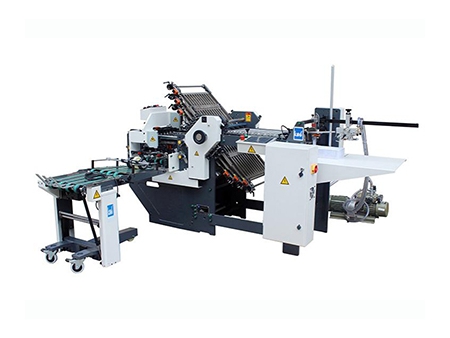

Paper Folder (6 Buckles and 2 Knives)
Request a Quote

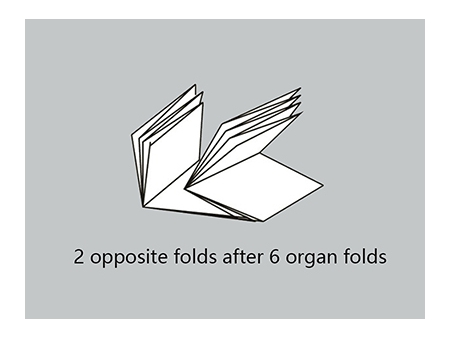

KMD’s 470T paper folder is composed of six buckles and two electric control knives. Paper is first passed through the two buckles in order to achieve a 6 time parallel folding, then 2 time cross folding with the use of the electric control knife. The folder then achieves half folding, double parallel folding and more.
Parameters- Max feeding sheet size (W*L): 470*750mm
- Min feeding sheet size (W*L): 50*100mm
- Sheet range: 40-157g
- Max folding roller speed: 180m/min
- Max. height of paper heap: 500mm
- Machine power: 3kw
- Machine netweight: 500kg
- Overall dimension (L*W*H) : 2900*1600*1415mm
- Max folding knife stroke: 200times/min
