Glass-Lined Storage Tank, F Type

Request a Quote

View All: http://taijiglasslined.com/2-2-glass-lined-storage-tank/232331/index.html

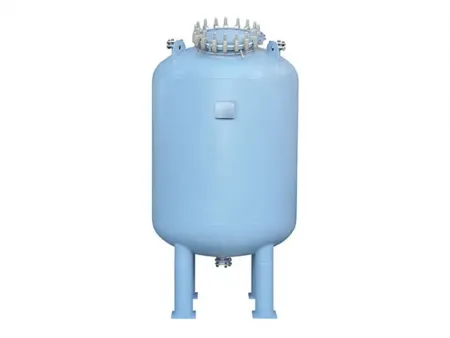

Here's our F type glass lined storage tank. It comes with a one-piece construction that means the cover and tank body can not be separated. This glass lined tank delivers perfect chemical storage solution combined with reliable corrosion resistance, stable glass lining and exceptional durability. Based on different volumes, the closed type steel storage tank is available in F1000L, F1500L, F2000L, F3000L, F5000L, F6300L, F8000L, F10000L, F12500L, F16000L, F20000L, F30000L, F50000L and other models. At Taiji, we also offer customization of non standard glass lined storage tanks to customers' specifications.

Technical Parameters of the Glass-Lined Storage Tank

	Inner Vessel
Design Pressure ( MPa )	ATM
Design Temperature ( ℃ )	-19 ℃ /150 ℃

Symbol	Usage
a	Manhole
b	Medium Inlet
c, d, e	Spare
f1,f2	Level Gauge Hole
g	Medium Outlet

Unit: mm
Specifications		F1000	F1500	F2000
Nominal Capacity (L)		1000	1500	2000
Total Capacity (L)		1300	1674	2337
Reference Weight (kg)		600	810	972
Main Dimension	d1	1000	1200	1300
	d2	600	720	780
	d3	700	840	950
	h1	1820	1680	1978
	h	2300	2120	2450
	n-Φ	3-Φ24	3-Φ24	3-Φ24
Nozzle DN	a	300×400	300×400	300×400
	b	80	80	80
	c	80	80	100
	d	80	80	/
	e	80	80	80
	f1	65	65	65
	f2	65	65	65
	g	80	100	100

	Internal Vessel
Design Pressure ( MPa )	ATM
Design Temperature ( ℃ )	-19 ℃ /150 ℃

Symbol	Usage
a	Manhole
b	Medium Inlet
c, d	Spare
f1,f2,f3,f4	Level Gauge Hole
g	Medium Outlet

Unit: mm
Specifications		F3000	F5000	F6300	F8000	F10000	F12500	F16000	F20000	F30000	F40000	F50000
Nominal Capacity (L)		3000	5000	6300	8000	10000	12500	16000	20000	30000	40000	50000
Total Capacity (L)		3796	5740	7100	8990	11270	13970	17821	22346	33553	44000	55000
Reference Weight (kg)		1543	1910	2980	3525	4380	5530	6670	8324	11720	15450	19300
Main Dimension	d1	1600	1600	1750	1900	2200	2400	2400	2600	3000	3200	3400
	d2	420	420	420	420	420	420	420	420	420	480	480
	d3	1200	1200	1300	1400	1650	1800	1800	1950	2250	2400	2550
	d4	600	600	600	600	700	700	700	700	700	800	800
	h1	2220	3174	3304	3554	3392	3554	4414	4714	5340	6125	6755
	h2	314	314	314	314	354	354	354	354	354	386	386
	h	2850	3790	3910	4185	4040	4207	5060	5400	6000	6870	7500
	n-Φ	4-Φ30	4-Φ30	4-Φ30	4-Φ30	4-Φ30	4-Φ36	4-Φ36	4-Φ36	4-Φ36	4-Φ36	4-Φ36
Nozzle DN	a	125	125	125	125	125	125	125	125	125	125	125
	b	65	65	65	65	80	80	80	80	80	80	80
	c	65	65	65	65	65	65	65	65	65	80	80
	d	65	65	65	65	65	65	65	65	65	65	65
	f1	65	65	65	65	65	65	65	65	65	80	80
	f2	65	65	65	65	65	65	65	65	65	80	80
	f3	/	65	/	/	/	/	65	65	65	80	80
	f4	/	65	/	/	/	/	65	65	65	80	80
	g	125	125	125	125	125	125	125	125	125	150	150
