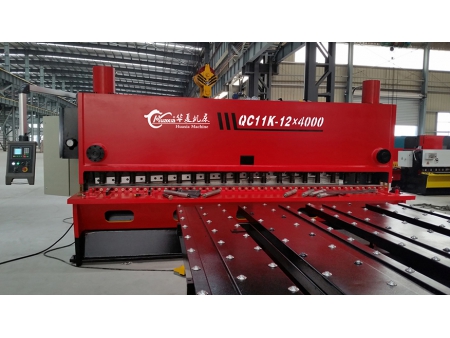

Introduction

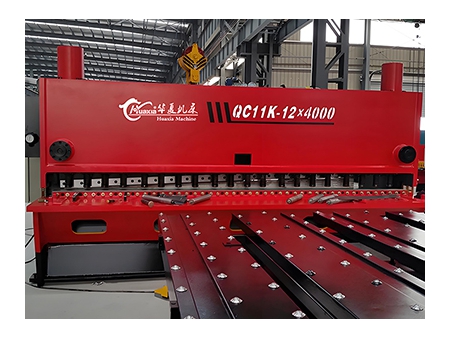

The QC11K hydraulic guillotine sheet metal shear features a fully welded structure processed by a stress-relief treatment that delivers a high degree of rigidity. The shear machine is operated by a single button for convenient operation.

Parameters

Model	Max. cutting thickness (mm)	Max. cutting width (mm)	Anti-strength of plate (N/mm²)	Shearing angle (°)	Back gauge range (mm)	Stroke times (min-1)	Throat length (mm)	Blade length (mm)	Main motor (kW)	Dimension (Lx W x H) (mm)
QC11Y-6x3200	6	3200	450	0.5-1.5	500	13-22	130	3300	7.5	3900x1520x2100
QC11Y-6x4000	6	4000	450	0.5-1.5	500	8-15	130	4100	7.5	4700x1700x2200
QC11Y-6x6000	6	6000	450	0.5-2	750	5-10	100	6100	11	6800x1900x2550
QC11Y-8x2500	8	2500	450	0.5-2	500	14-24	130	2600	7.5	3150x1580x2050
QC11Y-8x3200	8	3200	450	0.5-2	500	12-21	130	3300	7.5	3900x1700x2150
QC11Y-8x4000	8	4000	450	0.5-2	500	8-14	130	4100	11	4700x1840x2350
QC11Y-8x6000	8	6000	450	0.5-2	750	5-10	100	6100	11	6800x2100x2750
QC11Y-8x8000	8	8000	450	0.5-2	900	5-8	100	8080	18.5	8800x2400x3000
QC11Y-10x2500	10	2500	450	0.5-2	500	12-24	130	2600	11	3150x1670x2150
QC11Y-10x3200	10	3200	450	0.5-2	500	10-18	130	3300	11	3900x1730x2250
QC11Y-10x4000	10	4000	450	0.5-2	750	7-12	130	4100	18.5	4750x1900x2450
QC11Y-10x6000	10	6000	450	0.5-2	750	5-10	100	6100	18.5	6950x2200x2900
QC11Y-10x8000	10	8000	450	0.5-2	900	4-8	100	8080	30	8650x2500x3150
QC11Y-12x2500	12	2500	450	0.5-2.5	750	10-18	130	2600	18.05	3250x1800x2280
QC11Y-12x3200	12	3200	450	0.5-2.5	750	9-18	130	3300	18.5	3950x1870x2350
QC11Y-12x4000	12	4000	450	0.5-2.5	750	7-12	130	4100	18.5	4800x1970x2550
QC11Y-12x6000	12	6000	450	0.5-2.5	750	5-10	100	6100	30	7000x2250x3000
QC11Y-12x8000	12	8000	450	0.5-2.5	900	4-9	100	8080	37	9000x2500x3300
QC11Y-16x2500	16	2500	450	0.5-2.5	750	9-16	100	2600	18.5	3290x1890x2400
QC11Y-16x3200	16	3200	450	0.5-2.5	750	8-13	100	3300	18.5	3970x1920x2520
QC11Y-16x4000	16	4000	450	0.5-2.5	750	9-12	100	4100	30	4850x2100x2750
QC11Y-16x6000	16	6000	450	0.5-2.5	900	5-10	100	6100	37	7100x2460x2920
QC11Y-16x8000	16	8000	450	0.5-2.5	900	4-9	100	8080	37	9000x2650x3400
QC11Y-16x9000	16	9000	450	0.5-2.5	900	3-8	100	9100	45	10000x3260x3950
QC11Y-20x2500	20	2500	450	0.5-2.5	750	8-16	130	2600	30	3350x2100x2500
QC11Y-20x3200	20	3200	450	0.5-2.5	750	5-14	130	3300	30	4100x2150x2550
QC11Y-20x4000	20	4000	450	0.5-3	750	5-12	100	4100	30	4900x2200x2800
QC11Y-20x6000	20	6000	450	0.5-3	900	4-8	100	6100	37	7100x2600x3250
QC11Y-20x9000	20	9000	450	0.5-2.5	900	3-7	100	9100	55	10050x3350x4000
QC11Y-25x2500	25	2500	450	0.5-3	900	6-14	100	2600	37	3500x2150x2600
QC11Y-25x3200	25	3200	450	0.5-3	900	5-11	100	3300	37	4100x2150x2650
QC11Y-25x4000	25	4000	450	0.5-3	900	5-10	100	4100	37	4900x2280x2900
QC11Y-25x6000	25	6000	450	0.5-3	900	4-8	100	6100	45	7100x2680x3350
QC11Y-30x2500	25	2500	450	0.5-3.5	900	5-11	100	2600	45	3700x2570x3100
QC11Y-30x3200	30	3200	450	0.5-3.5	900	5-9	100	3300	45	4400x2800x3250
QC11Y-30x4000	30	4000	450	0.5-3.5	900	4-9	100	4100	55	5200x3000x3400
QC11Y-30x6000	30	6000	450	0.5-3.5	900	4-8	100	6100	55	7100x3000x3600
QC11Y-40x2500	40	2500	450	0.5-4	900	4-11	100	2600	55	3950x3020x3300

(Please enter your desired product model)

Details

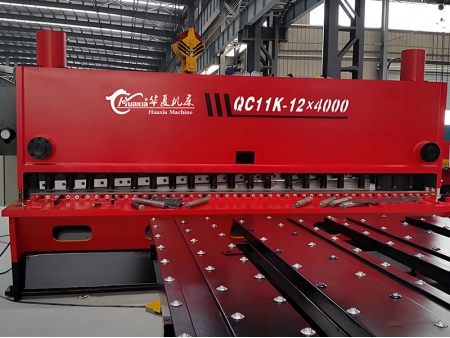

Front feed device
Siemens front feed control system
Pneumatic clamps

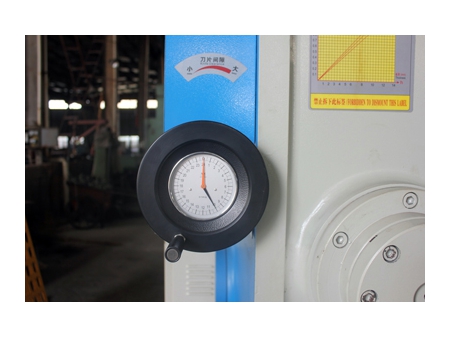

Features

The main body of the feeding platform is welded, and it is processed with a stress-relief treatment for high rigidity.

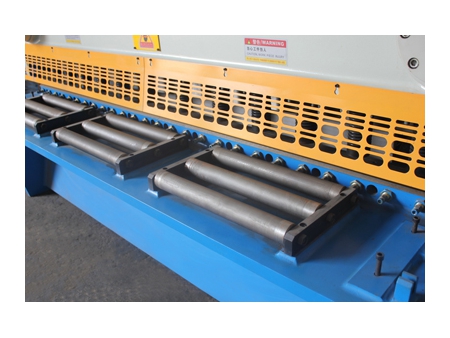

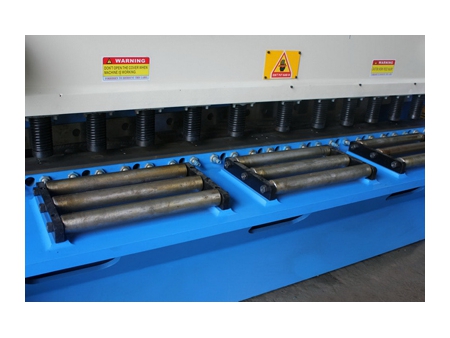

The bed uses a ball transfer mechanism, so steel sheet runs smoothly and there is no resistance.

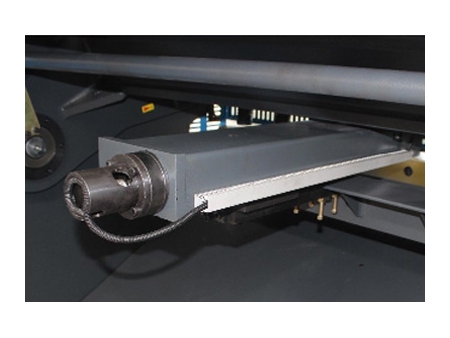

The sheet metal shear's X and Y axis equipped with a TBI ball screw and linear guide.

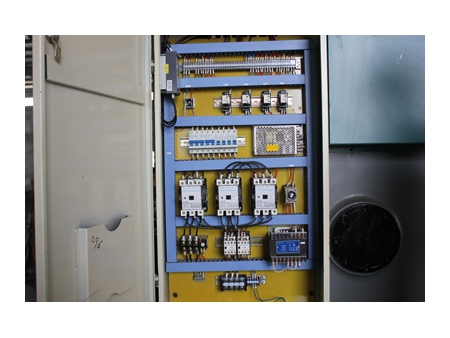

The shear is controlled by an industrial computer equipped with a LEATA control card's CNC system, achieving AutoCAD graphics conversion, and it is equipped with a mold management system, achieving automatic positioning of the steel sheet.

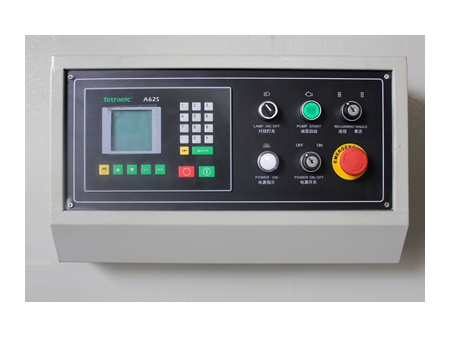

The shear operated by a single button with breakpoint processing, and has a workpiece counting function. It can simulate the processing track and run with no load.

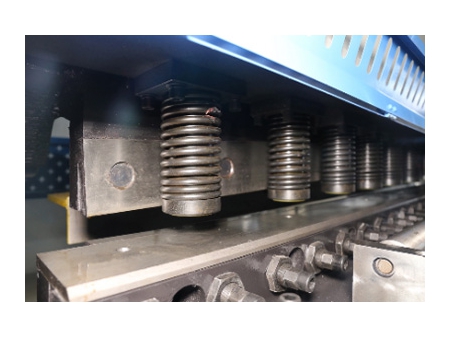

The shear is equipped with multiple hydraulic clamps, avoiding crushing the sheet.
Aluminum alloy flexible coupling is adopted to ensure the accuracy of transmission and correction.

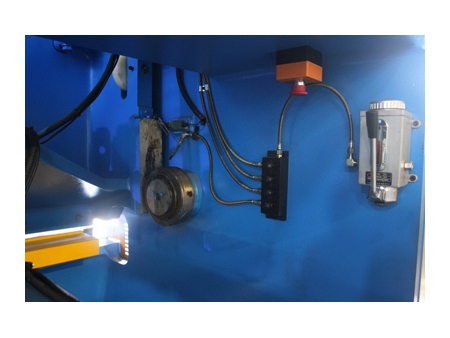

Centralized lubrication system can lubricate the machine automatically, so it is not necessary to add lubrication to each point manually. This reduces friction and improves the machine's operational life span.
