E2000 Fiber Adapter
Request a Quote

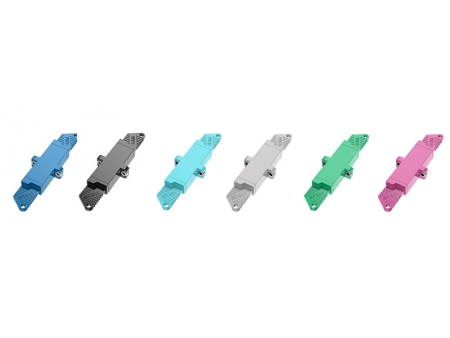

The E2000 adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-Loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.
Applications
- Fiber optic transmission system
- CATV networks
- LAN
- Testing/Measurement Instruments
- Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinet
Features
Technical Parameters - Excellent handling at high packing density
- Simple, duplex and 8-way types available
- Bulkhead adaptor* Self-retentive mechanism enables
- Low the ferrules compression forces off the back panel
| Polish Type | Unit | PC | APC |
| Nominal fiber O/D | um | 125±2 | |
| Insertion Loss | dB | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥50 | ≥65 |
| Mating Durability (500Cycles) | dB | ≤0.2 | |
| Temperature Stability | dB | ≤0.3 | |
| Operating Temperature | °C | -40~ 85 | |
| Storage Temperature | °C | -40~ 85 |
