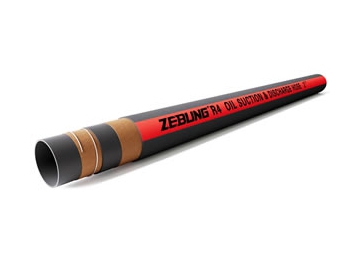

Hydraulic Oil Suction and Discharge Hose
The Hydraulic oil suction and discharge hose is a vital component designed to efficiently handle the suction and delivery of hydraulic fluids, including glycols, mineral oils, lubricants, emulsions, and hydrocarbons. Engineered with premium materials, this hose ensures optimal performance and durability in demanding industrial applications.
Basic Information- Inner tube: Nitrile Butyl rubber compound (tensile strength ≥7MPa)
- Reinforcement: Single/double layer textile cord braided or textile cord wrapped
- Outer cover: Butyl Chloroprene rubber compound (tensile strength ≥9MPa)
- Working temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Available in various colors such as black, red, etc.
Application
The rubber oil suction and delivery hose features good oil mist resistance, high flexibility, and long service life, which is specially used for the suction and delivery of petroleum products with aromatic content up to 20%. This rubber hose is ideally suitable for use in the oil return system of hydraulic pipeline.
- Good oil mist resistance: The hose is resistant to oil mist, ensuring effective performance in suction and delivery applications involving petroleum products.
- High flexibility: Designed with flexibility in mind, the hose offers ease of handling and maneuverability in various industrial settings.
- Long service life: Engineered for durability, the hose boasts a prolonged service life, reducing the need for frequent replacements.
- Specifically designed for aromatic content: Specially crafted for petroleum products with aromatic content up to 20%, ensuring reliable performance in such applications.
Technical Parameters
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| HOSD019-150 | 19 | 3/4" | 30.8 | 10 | 150 | 30 | 450 | 0.72 | 61 |
| HOSD025-150 | 25 | 1" | 36.8 | 10 | 150 | 30 | 450 | 0.89 | 61 |
| HOSD032-150 | 32 | 1-1/4" | 44.8 | 10 | 150 | 30 | 450 | 1.19 | 61 |
| HOSD038-150 | 38 | 1-1/2" | 51.4 | 10 | 150 | 30 | 450 | 1.48 | 61 |
| HOSD045-150 | 45 | 1-3/4" | 58.4 | 10 | 150 | 30 | 450 | 1.71 | 61 |
| HOSD051-150 | 51 | 2" | 64.4 | 10 | 150 | 30 | 450 | 1.91 | 61 |
| HOSD064-150 | 64 | 2-1/2" | 78.4 | 10 | 150 | 30 | 450 | 2.48 | 61 |
| HOSD076-150 | 76 | 3" | 90.8 | 10 | 150 | 30 | 450 | 3.00 | 61 |
| HOSD089-150 | 89 | 3-1/2" | 106.2 | 10 | 150 | 30 | 450 | 4.33 | 61 |
| HOSD102-150 | 102 | 4" | 119.2 | 10 | 150 | 30 | 450 | 4.90 | 61 |
| HOSD127-150 | 127 | 5" | 146.2 | 10 | 150 | 30 | 450 | 6.57 | 61 |
| HOSD152-150 | 152 | 6" | 171.6 | 10 | 150 | 30 | 450 | 7.94 | 61 |
| HOSD203-150 | 203 | 8" | 224.8 | 10 | 150 | 30 | 450 | 12.07 | 40 |
| HOSD254-150 | 254 | 10" | 280.8 | 10 | 150 | 30 | 450 | 19.75 | 12 |
| HOSD304-150 | 304 | 12" | 334.2 | 10 | 150 | 30 | 450 | 27.68 | 12 |
| HOSD019-300 | 19 | 3/4" | 30.8 | 20 | 300 | 60 | 900 | 0.72 | 61 |
| HOSD025-300 | 25 | 1" | 36.8 | 20 | 300 | 60 | 900 | 0.89 | 61 |
| HOSD032-300 | 32 | 1-1/4" | 47.2 | 20 | 300 | 60 | 900 | 1.45 | 61 |
| HOSD038-300 | 38 | 1-1/2" | 53.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| HOSD045-300 | 45 | 1-3/4" | 60.8 | 20 | 300 | 60 | 900 | 2.05 | 61 |
| HOSD051-300 | 51 | 2" | 66.8 | 20 | 300 | 60 | 900 | 2.29 | 61 |
| HOSD064-300 | 64 | 2-1/2" | 81.2 | 20 | 300 | 60 | 900 | 2.95 | 61 |
| HOSD076-300 | 76 | 3" | 94 | 20 | 300 | 60 | 900 | 3.63 | 61 |
| HOSD089-300 | 89 | 3-1/2" | 107.8 | 20 | 300 | 60 | 900 | 4.58 | 61 |
| HOSD102-300 | 102 | 4" | 120.8 | 20 | 300 | 60 | 900 | 5.18 | 61 |
| HOSD127-300 | 127 | 5" | 149.8 | 20 | 300 | 60 | 900 | 7.73 | 61 |
| HOSD152-300 | 152 | 6" | 175.2 | 20 | 300 | 60 | 900 | 9.34 | 61 |
| HOSD203-300 | 203 | 8" | 229.6 | 20 | 300 | 60 | 900 | 15.02 | 40 |
| HOSD254-300 | 254 | 10" | 288.8 | 20 | 300 | 60 | 900 | 25.46 | 12 |
| HOSD304-300 | 304 | 12" | 339.8 | 20 | 300 | 60 | 900 | 32.20 | 12 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
