Grooved Eccentric Reducer
Request a Quote
Grooved pipe fittings

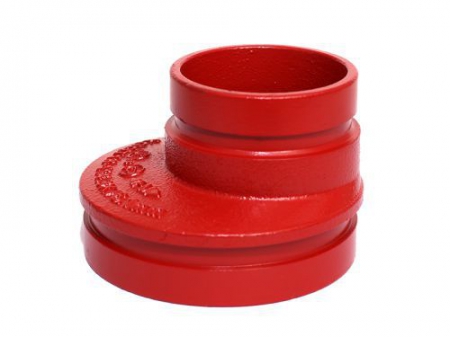

Grooved eccentric reducers are cone-shaped pipe fittings with grooves for connection, which reduce the size of the pipeline in an eccentric manner. This product achieves mechanical coupling by using a set of grooves at the ends of the pipes and fittings. Typically, a specialized tool is used to cut a groove at the pipe end, and then the joint is clamped onto the groove using bolts or a similar mechanism.
Features
- Grooved eccentric reducers are made of ductile iron, stainless steel, or carbon steel, offering strong wear resistance and corrosion resistance.
- Available in various sizes and pressure ratings, suitable for different applications.
- Enables the connection of two pipes with different diameters.
- Connects pipes to provide changes in direction and adapt sizes or components.
Recommended Applications
Grooved eccentric reducers are commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where the size of the pipeline needs to be reduced to accommodate changes in flow or pressure.
Key Specifications
Connects pipe, provides change in direction and adapts sizes or components
- Available sizes: 1 1/4×1 inch~12×4 inch |DN32×25~DN300×100
- Working pressure: 300PSI/2.07MPa
- Certificate: FM/UL/CE certified
- Coating: epoxy/galvanized
- Color: red/orange/white
- Material: ductile iron

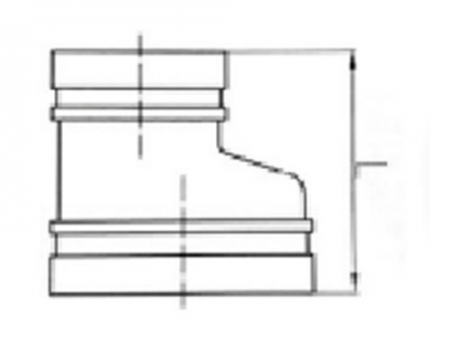

Specifications
| Nominal Size | Pipe OD | Dimensions |
| mm/in | mm/in | L mm/in |
| 32x25 / 1 1/4x1 | 42.4x33.7 / 1.660x1.315 | 64 / 2.51 |
| 40x25 / 11/2x1 | 48.3x33.7 / 1.900x1.315 | 64 / 2.51 |
| 40x32 / 1 1/2×1 1/4 | 48.3x42.4 / 1.900x1.660 | 64 / 2.51 |
| 50x25 / 2x1 | 60.3 x 33.7 / 2.375x1.315 | 64 / 2.51 |
| 50x32 / 2x1 1/4 | 60.3x42.4 / 2.375x1.660 | 64 / 2.51 |
| 50x40 / 2x1 1/2 | 603x48.3 / 2.375x1.900 | 64 / 2.51 |
| 65x25 / 2 1/2x1 | 73.0 x 33.7 / 2.875x1.315 | 64 / 2.51 |
| 65x32 / 2 1/2x1 1/4 | 73.0x42.4 / 2.875x1.660 | 64 / 2.51 |
| 65x40 / 2 1/2x1 1/2 | 73.0x48.3 / 2.875x1.900 | 64 / 2.51 |
| 65x50 / 2 1/2x2 | 73.0 x 60.3 / 2.875x2.375 | 64 / 2.51 |
| 65x32 / 2 1/2x1 1/4 | 76.1 x 42.4 / 3.000x1.660 | 64 / 2.51 |
| 65x40 / 2 1/2x1 1/2 | 76.1x48.3 / 3.000x1.900 | 64 / 2.51 |
| 65x50 / 2 1/2x2 | 76.1x60.3 / 3.000 x 2.375 | 64 / 2.51 |
| 80x32 / 3x1 1/4 | 88.9x42.4 / 3.500x1.660 | 55 / 2.17 |
| 80x40 / 3x1 1/2 | 88.9 x 48.3 / 3.500x1.900 | 55 / 2.17 |
| 80x50 / 3x2 | 88.9 x 60.3 / 3.500x2.375 | 55 / 2.17 |
| 80x65 / 3x2 1/2 | 88.9x76.1 / 3.500 x 3.000 | 55 / 2.17 |
| 100x65 / 4x2 1/2 | 108.0 x 76.1 / 4.250 x 3.000 | 76 / 2.99 |
| 100x80 / 4x3 | 108.0x88.9 / 4.250 x 3.500 | 76 / 2.99 |
| 100x32 / 4x1 1/4 | 114.3x42.4 / 4.500x1.660 | 60 / 2.36 |
| 100x40 / 4x1 1/2 | 114.3x48.3 / 4.500x1.900 | 60 / 2.36 |
| 100x50 / 4x2 | 114.3x60.3 / 4.500x2.375 | 60 / 2.36 |
| 100x65 / 4x2 1/2 | 114.3x76.1 / 4.500 x 3.000 | 60 / 2.36 |
| 100x80 / 4x3 | 114.3x88.9 / 4.500 x 3.500 | 60 / 2.36 |
| 125x50 / 5x2 | 139.7x60.3 / 5.500x2.375 | 65 / 2.56 |
| 125x65 / 5x2 1/2 | 139.7x76.1 / 5.500 x 3.000 | 65 / 2.56 |
| 125x80 / 5x3 | 139.7x88.9 / 5.500 x 3.500 | 65 / 2.56 |
| 125x100 / 5x4 | 139.7x114.3 / 5.500 x 4.500 | 65 / 2.56 |
| 150x50 / 6x2 | 159.0x60.3 / 6.250x2.375 | 70 / 2.76 |
| 150x65 / 6x2 1/2 | 159.0x76.1 / 6.250 x 3.000 | 70 / 2.76 |
| 150x80 / 6x3 | 159.0x88.9 / 6.250 x 3.500 | 70 / 2.76 |
| 150x100 / 6x4 | 159.0x108.0 / 6.250 x 4.250 | 70 / 2.76 |
| 150x100 / 6x4 | 159.0x114.3 / 6.250x4.500 | 70 / 2.76 |
| 150x125 / 6x5 | 159.0x133.0 / 6.250x5.250 | 70 / 2.76 |
| 150x125 / 6x5 | 159 0x139 7 / 6.250 x 5.500 | 70 / 2.76 |
| 150x50 / 6x2 | 165.1 x60.3 / 6.500 x 2.375 | 102 / 4.01 |
| 150x65 / 6x2 1/2 | 165.1x76.1 / 6.500 x 3.000 | 102 / 4.01 |
| 150x80 / 6x3 | 165.1x88.9 / 6.500 x 3.500 | 102 / 4.01 |
| 150x100 / 6x4 | 165.1x114.3 / 6.500x4.500 | 102 / 4.01 |
| 150x125 / 6x5 | 165.1x139.7 / 6.500x5.500 | 102 / 4.01 |
| 150x50 / 6x2 | 168.3 x 60.3 / 6.625x2.375 | 70 / 2.76 |
| 150x65 / 6x2 1/2 | 168.3x76.1 / 6.625 x 3.000 | 70 / 2.76 |
| 150x80 / 6x3 | 168.3 x 88.9 / 6.625x3.500 | 70 / 2.76 |
| 150x100 / 6x4 | 168.3x114.3 / 6.625x4.500 | 70 / 2.76 |
| 150x125 / 6x5 | 168.3x139.7 / 6.625 x 5.500 | 70 / 2.76 |
| 200 x 50 / 8x2 | 219.1x60.3 / 8.625x2.375 | 85 / 3.35 |
| 200x65 / 8x2 1/2 | 219.1x76.1 / 8 625x3.000 | 85 / 3.35 |
| 200 x 80 / 8x3 | 219.1x88.9 / 8.625x3.500 | 85 / 3.35 |
| 200x100 / 8x4 | 219.1 x 108.0 / 8.625x4.250 | 85 / 3.35 |
| 200x100 / 8x4 | 219.1 x 114.3 / 8.625x4.500 | 85 / 3.35 |
| 200x125 / 8x5 | 219.1 x 139.7 / 8.625 x 5.500 | 85 / 3.35 |
| 200x150 / 8x6 | 219.1 x 159.0 / 8.625x6.250 | 85 / 3.35 |
| 200x150 / 8x6 | 219.1 x 165.1 / 8.625x6.500 | 85 / 3.35 |
| 200x150 / 8x6 | 219.1 x 168.3 / 8.625x6.625 | 85 / 3.35 |
Which method allows for the quick installation of a piping system?
Grooved pipe fittings make fast installation possible, offering ease of use and low maintenance costs. If you are looking for a better way to connect pipes, grooved fitting is an ideal method.
Why is grooved pipe joining becoming increasingly popular in piping construction?
Grooved pipe joining provides high stability and seismic resistance to piping systems, as well as reduces piping construction time and mitigates the risks that often occur during installation. Therefore, grooved pipe joining has become a highly favored method in pipeline construction projects.
