Grooved End Cap with Eccentric Hole

Request a Quote

View All: http://grooved-fittings.com/7-3-grooved-end-cap-with-eccentric-hole.html

Grooved drain caps

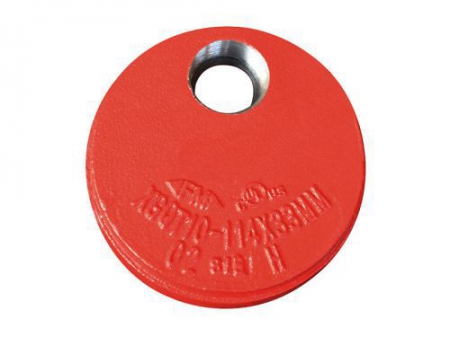

Grooved end cap with concentric hole is used to be fitted onto the end of a pipe with a threaded eccentric hole for drainage. This grooved end cap provides an economic and efficient method of reducing grooved piping systems.

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy / galvanized
Color: red/orange/white etc.

Specifications

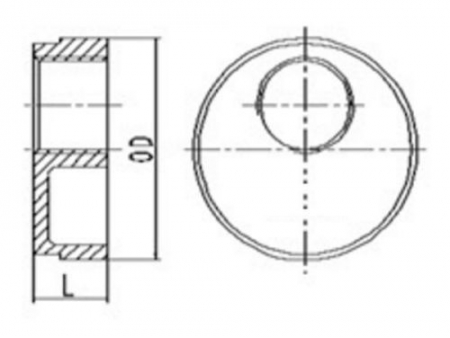

Nominal Size	Pipe OD	Dimensions
mm/in	mm/in	L mm/in
50 ×25 / 2×1	60.3 ×33.7 / 2.375×1.315	25 / 0.98
65 ×25 / 2 1/2×1	73 ×33.7 / 2.875×1.315	25 / 0.98
65 ×25 / 2 1/2×1	76.1 ×33.7 / 3×1.315	25 / 0.98
80 ×25 / 3×1	88.9 ×33.7 / 3.5×1.315	25 / 0.98
100 ×25 / 4×1	108 ×33.7 / 4.25×1.315	25 / 0.98
100 ×25 / 4×1	114.3×33.7 / 4.5×1.315	26 / 1.02
125 ×25 / 5×1	133 ×33.7 / 5.25×1.315	25 / 0.98
125 ×25 / 5×1	139.7 ×33.7 / 5.5×1.315	26 / 1.02
125 ×25 / 5×1	141.3 ×33.7 / 5.563×1.315	26 / 1.02
150 ×25 / 6×1	159 ×33.7 / 6.25×1.315	26 / 1.02
150 ×25 / 6×1	165.1 ×33.7 / 6.5×1.315	26 / 1.02
150 ×25 / 6×1	168.3 ×33.7 / 6.625×1.315	26 / 1.02
200 ×25 / 8×1	219.1 ×33.7 / 8.625×1.315	30 / 1.18
250 ×25 / 10×1	273 ×33.7 / 10.75×1.315	32 / 1.26
