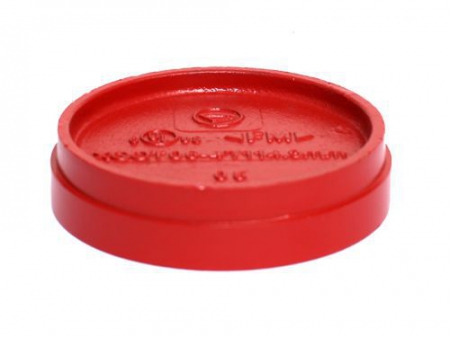

Grooved End Cap
Request a Quote
Grooved pipe fittings
A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.
Key Specifications
- Available sizes: 1 inch~12 inch |DN25~DN600
- Working pressure: 300PSI/2.07MPa
- Certificate: FM / UL /CE certified
- Coating: epoxy / galvanized
- Color: red/orange/white etc.

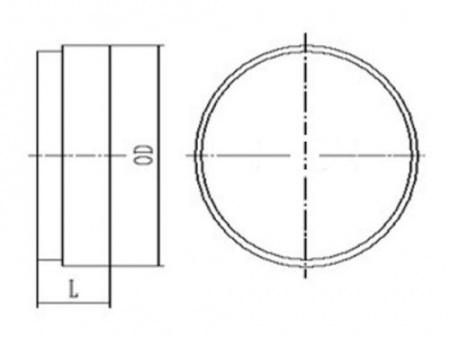

Specifications
| Nominal Size | Pipe OD | Dimensions |
| mm/in | mm/in | L mm/in |
| 25 / 1 | 33.7 / 1.327 | 25 / 0.98 |
| 32 / 1 1/4 | 42.4 / 1.669 | 25 / 0.98 |
| 40 / 1 1/2 | 48.3 / 1.9 | 25 / 0.98 |
| 50 / 2 | 60.3 / 2.375 | 25 / 0.98 |
| 65 / 2 1/2 | 73 / 2.875 | 25 / 0.98 |
| 65 / 2 1/2 | 76.1 / 3 | 25 / 0.98 |
| 80 / 3 | 88.9 / 3.5 | 25 / 0.98 |
| 100 / 4 | 108 / 4.25 | 25 / 0.98 |
| 100 / 4 | 114.3 / 4.5 | 26 / 1.02 |
| 125 / 5 | 133 / 5.25 | 25 / 0.98 |
| 125 / 5 | 139.7 / 5.5 | 26 / 1.02 |
| 125 / 5 | 141.3 / 5.563 | 26 / 1.02 |
| 150 / 6 | 159 / 6.25 | 26 / 1.02 |
| 150 / 6 | 165.1 / 6.5 | 26 / 1.02 |
| 150 / 6 | 168.3 / 6.625 | 26 / 1.02 |
| 200 / 8 | 219.1 / 8.625 | 30 / 1.18 |
| 250 / 10 | 273 / 10.75 | 32 / 1.26 |
