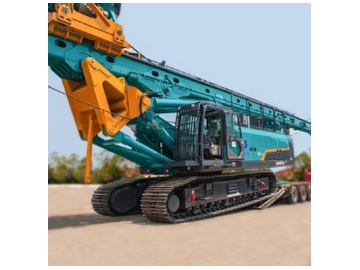

Rotary Drilling Rig SWDM220-3
  • Overall height: 22.2m
  • Max. drilling diameter: 2.0m
  • Max. drilling depth: 69m

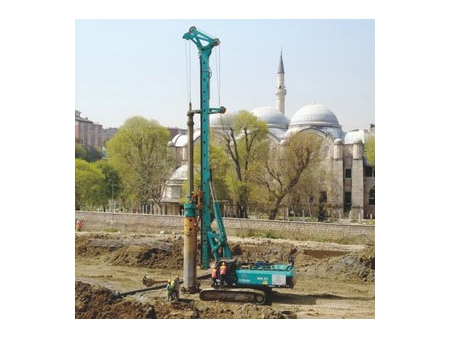

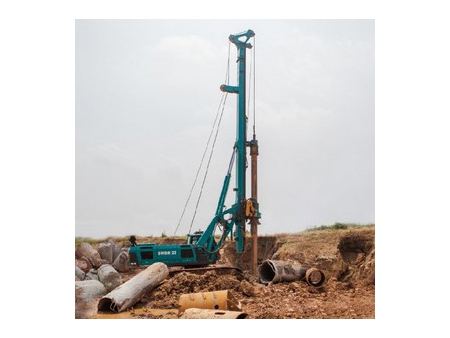

Suitable for civil construction and piling projects;

Main winch features high pull force and speed, the rotation speed of rotary head is high, providing excellent working efficiency;

Single-layer winding of steel rope for minimal rope wear, increasing 50% of rope life;

Heavy-duty retractable crawler undercarriage coupled with double cylinder luffing mechanism ensures the high stability and reliability;

Hidden type outrigger leg is located at bottom part of the mast, not only can enhance the stability during drilling but also facilitate daily maintenance of undercarriage;

Fault self-diagnosis and alarm, real-time display of drilling parameters, control unit with one-button locking, providing guaranteed operation safety;

Through mobile phone APP (cloud platform), operating data can be synchronously transmitted and the equipment status can be monitored via monitoring camera at any time; Other assistance systems like audible / visible alarm and emergency stop button are available to assist operators in convenient and safe control for drilling process;

Wireless remote control is optional to achieve remote control of travelling and luffing, keeping operator safe while giving a wider visibility for special working conditions;

Wide functional expansibility, can achieve multiple functions in one machine, e.g. continuous flight auger (CFA) pile construction, belled pile construction, large-diameter variable-section pile construction; Can be retrofitted to a DTH drilling rig with swivel joint to execute ultra large diameter deep hole reverse circulation drilling;

Technical Specifications
Drill hole Max. drilling diameter mm 2000
Max. drilling depth m 69/54
Engine Brand Cummins
Model QSL9-C325
Power kW@rpm 242@2100
Rotary head Max. torque kN.m 245
Rotation speed rpm 6〜28
High-speed removal of drill cuttings (optional) rpm 70
Crowd system Max. crowd pressure kN 210
Max. crowd pull kN 240
Max. stroke mm 5000
Main winch Max. line pull kN 230
Max. line speed m/min 70
Auxiliary winch Max. line pull kN 80
Max. line speed m/min 58
Mast inclination Lateral ° ±5
Forward/backward ° 5

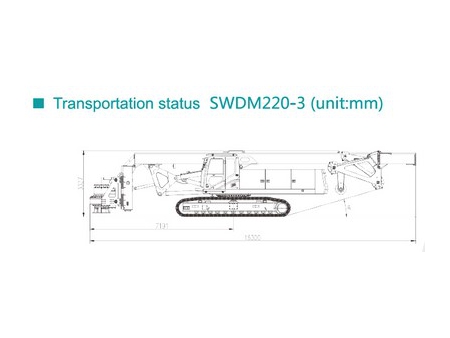

Undercarriage Crawler width mm 800
Crawler width (extended) mm 3000〜4500
Crawler length mm 5755

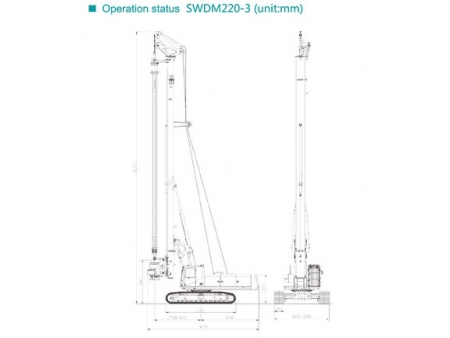

Complete machine Working height mm 22275
Working weight t 76

Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
