Bottle Sleeving Machine

Request a Quote

View All: http://liquidpackagingline.com/2-8-1-bottle-sleeving-machine.html

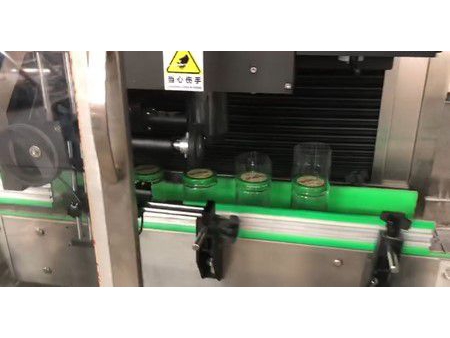

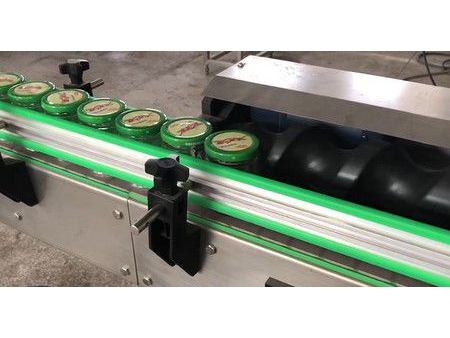

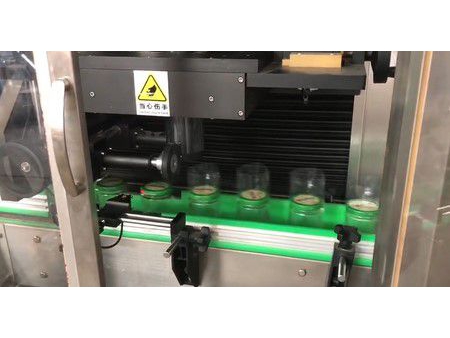

Sleeve label applicator for bottle body sleeving and neck banding

Our bottle sleeving machine can automatically apply sleeves on bottles, delivering both visually appealing labeling and effective product protection. Primarily utilized for labeling bottles or creating a tamper-evident seal over the cap, it serves as a versatile solution for the food, beverage, and pharmaceutical industries. This machine streamlines the sleeving process, ensuring both efficiency and quality in packaging.

Applications

Ideal for a range of products including beverage bottles, sauce bottles, canned food containers, and daily chemical bottles. It can apply full body sleeves or target specific areas such as over the cap, depending on your specific needs.

Specifications

Power supply	220V, 3kW
Production capacity	Max.3500bph (label length: 100mm) (the longer the label length, the slower the production speed)
Bottle diameter	Ø20mm-130mm (other diameters can be customized)
Cutting range	Ø20mm-50mm, Ø50mm-95mm, Ø95mm-130mm
Label length	25mm-250mm
Label thickness	0.03mm-0.13mm
Dimensions	3000×860×2000mm
