Automatic Wire Feeding Machine
Request a Quote
Automatic wire feeding machine is specially designed by KCMCO to match CNC spring machines in the process of spring forming. By automatically adjusting the feeding speed, it enables the feeding speed of the wire feeder the same as the spring machine. It will give an alarming signal and stop automatically whenever there is wire entangling, breaking on the feeding tray, or the feeding is finished. This machine is easy to operate and convenient to use, and of high working efficiency.

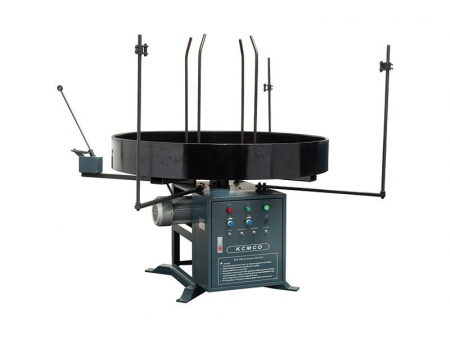

KSJ -1000 Automatic Wire Feeding Machine
- Max. Capacity of Load: 1000 kg
- Max. Speed of Table: 50 rpm
- Diameter of Table: 2000 mm
- Motor: 4 kW
- Dimensions: 2900*2200*1365 mm
- Weight: 1000 kg
Request a quote
KSJ-400 Automatic Wire Feeding Machine
- Max Capacity of Load: 400 kg
- Max Speed of Table: 58 rpm
- Diameter of Table: 1300 mm
- Motor: 2.2 kW
- Dimensions : 1000*1300*900 mm
- Weight: 150 kg
Request a quote
KSJ-200 Automatic Wire Feeding Machine
- Max Capacity of Load: 200 kg
- Max Speed of Table: 70 rpm
- Diameter of Table: 850 mm
- Motor: 750 W
- Dimensions: 800*850*800 mm
- Weight: 100 kg
Request a quote
KSJ-100 Automatic Wire Feeding Machine
- Max Capacity of Load: 100 kg
- Max Speed of Table: 150 rpm
- Diameter of Table: 650 mm
- Motor: 180 W
- Dimensions: 650*650*750 mm
- Weight: 60 kg
Request a quote
