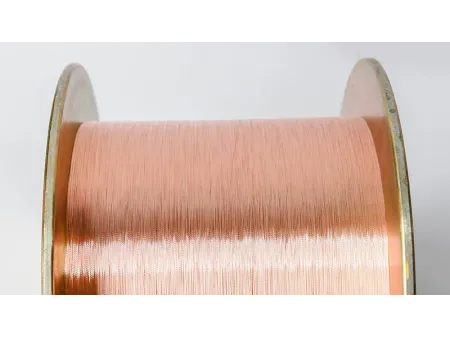

Copper Clad Steel Wire (CCS Wire)
Copper clad steel wire or CCS wire combines a steel rod or steel wire as its core with a concentrically clad copper coating. The metallic cohesion provides this conductive wire with high tensile strength of steel and conductivity properties of copper. As the copper permanently bonded on the surface of the steel core, it efficiently prevents the steel from corrosion and allows a single of this bi-metal wire to be processed with drawing and annealing treatment. This CCS wire can maintain the ratio of copper and steel unchanged during the drawing process, while the copper volume ratio remains relatively constant. Since the signal itself travels on the outer edge of the center conductor which is called “skin effect”, this makes copper clad steel wire and copper clad aluminum wire possible to transmit high frequency signal (over 5MHz) with the same conductivity of the pure copper wire.
CCS wire diameter: 0.08mm-25.00mm
- Conductor of coaxial cable for television signal distribution
- Conductor of LAN cable and Internet access cable
- Connector pins of electronic components
- Overhead conductor for power transmission and telephone line
- Overhead catenary wire, overhead conductor of overhead contact system
- Cable metallic sheathing
- Grounding conductor / earth rod
- Conductor material for medical equipment cable
- Connector for heat resistant wires and cables
- Center core of high temperature RF cable
- Conductor of high frequency signal transmission cable
Spool size: DIN 100, DIN 130, DIN 180, DIN 250, DIN 400, DIN 500, DIN 630, DIN 800;
