Oil Lubricated Piston Air Compressor
Request a Quote
- Air Displacement (L/min): 118～412
- Maximum Pressure (Bar/PSI): 8Bar / 115PSI
- Power(W): 900~2200 (Customization is available)
We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.
-

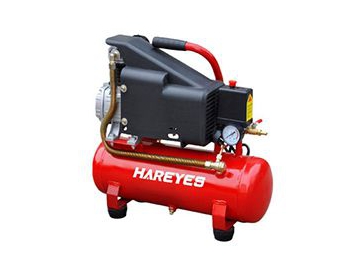

HR-1008 Oil Lubricated Piston Air Compressor 900W/1.25HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 900/1.25 8Bar/115PSI 50 118 4.16 2850 51*22*50 60 141 4.99 3400 -

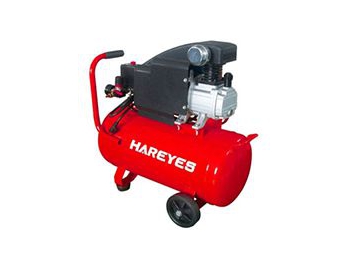

HR-1524KC Oil Lubricated Piston Air Compressor 1100W/1.50HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1100/1.50 8Bar/115PSI 50 155 5.46 2850 58*25*58 60 185 6.5 3400 -

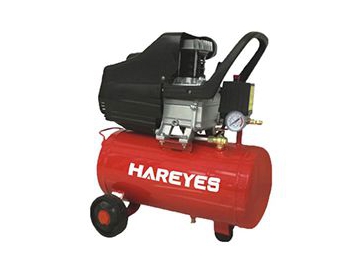

HR-1524B Oil Lubricated Piston Air Compressor 1100W/1.50HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1100/1.50 8Bar/115PSI 50 138 4.88 2850 58*25*58 60 165 5.82 3400 -
HR-2024B Oil Lubricated Piston Air Compressor 1500W/2HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1500/2 8Bar/115PSI 50 206 7.28 2850 58*25*58 60 246 8.7 3400 -

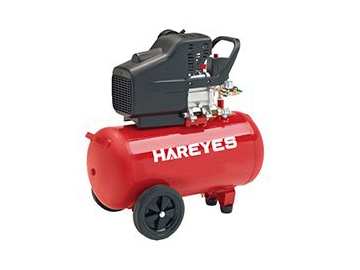

HR-2524B Oil Lubricated Piston Air Compressor 1800W/2.5HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1800/2.5 8Bar/115PSI 50 270 9.53 2850 58*25*58 60 323 11.4 3400 -

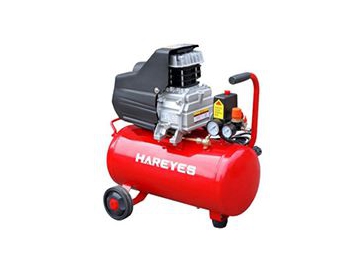

HR-1550B Oil Lubricated Piston Air Compressor 1100W/1.5HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1100/1.5 8Bar/115PSI 50 138 4.88 2850 72*33*68 60 165 5.82 3400 -

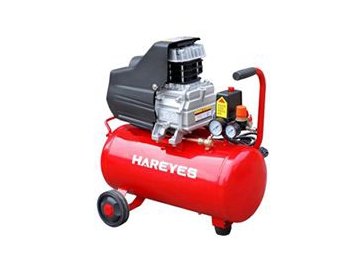

HR-2050B Oil Lubricated Piston Air Compressor 1500W/2HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1500/2 8Bar/115PSI 50 206 7.28 2850 72*33*68 60 246 8.7 3400 -
HR-2550B Oil Lubricated Piston Air Compressor 1800W/2.5HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1800/2.5 8Bar/115PSI 50 270 9.53 2850 72*33*68 60 323 11.4 3400 -

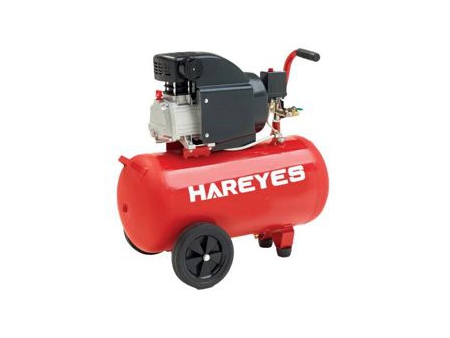

HR-1524F Oil Lubricated Piston Air Compressor 1100W/1.5HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1100/1.5 8Bar/115PSI 50 138 4.88 2850 58*25*58 60 165 5.82 3400 -
HR-2024F Oil Lubricated Piston Air Compressor 1500W/2HPPower (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm) L / Min CFM 1500/2 8Bar/115PSI 50 206 7.28 2850 58*25*58 60 246 8.7 3400
| Model | Power | Tank Volume | Maximum Pressure | Frequency | Air Displacement | speed | N.W./G.W | Meas | |
| Litre | Litre / Min | CFM | (R.P.M) | KGS | (cm) | ||||
| 900W / 1.25HP | 8 L | 8Bar / 115PSI | 50 HZ | 118 | 4.16 | 2850 | 15 / 16 | 51*22*50 | |
| 60 HZ | 141 | 4.99 | 3400 | ||||||
| 1100W / 1.50HP | 24L | 50 HZ | 155 | 5.46 | 2850 | 20 / 22 | 58*25*58 | ||
| 60 HZ | 185 | 6.5 | 3400 | ||||||
| 1100W / 1.50HP | 24L | 8Bar/115PSI | 50Hz | 138 | 4.88 | 2850 | 19/21 | 58*25*58 | |
| 60Hz | 165 | 5.82 | 3400 | ||||||
| 1500W / 2HP | 50Hz | 206 | 7.28 | 2850 | 20/22 | ||||
| 60Hz | 246 | 8.7 | 3400 | ||||||
| 1800W / 2.5HP | 50Hz | 270 | 9.53 | 2850 | 22/24 | ||||
| 60Hz | 323 | 11.4 | 3400 | ||||||
| 1100W / 1.5HP | 50L | 8Bar/115PSI | 50Hz | 138 | 4.88 | 2850 | 26.5/28.5 | 72*33*68 | |
| 60Hz | 165 | 5.82 | 3400 | ||||||
| 1500W / 2HP | 50Hz | 206 | 7.28 | 2850 | 28/30 | ||||
| 60Hz | 246 | 8.7 | 3400 | ||||||
| 1800W / 2.5HP | 50Hz | 270 | 9.53 | 2850 | 32/34 | ||||
| 60Hz | 323 | 11.4 | 3400 | ||||||
| 1100W / 1.5HP | 24L | 8Bar / 115PSI | 50 HZ | 138 | 4.88 | 2850 | 19 / 21 | 58*25*58 | |
| 60 HZ | 165 | 5.82 | 3400 | ||||||
| | 1500W / 2HP | 50 HZ | 206 | 7.28 | 2850 | 20 / 22 | |||
| 60 HZ | 246 | 8.7 | 3400 | ||||||
| 1800W / 2.5HP | 50 HZ | 270 | 9.53 | 2850 | 22 / 124 | ||||
| 60 HZ | 323 | 11.4 | 3400 | ||||||
| 1100W / 1.5HP | 50L | 8Bar / 115PSI | 50 HZ | 138 | 4.88 | 2850 | 26.5/28.5 | 72*33*68 | |
| 60 HZ | 165 | 5.82 | 3400 | ||||||
| 1500W / 2HP | 50 HZ | 206 | 7.28 | 2850 | 28/30 | ||||
| 60 HZ | 246 | 8.7 | 3400 | ||||||
| 1800W / 2.5HIP | 50 HZ | 270 | 9.53 | 2850 | 32/34 | ||||
| 60 HZ | 323 | 11.4 | 3400 | ||||||
| 1500W / 2HP | 16L | 8Bar / 115PSI | 50 HZ | 206 | 7.28 | 2850 | 15/16 | 51*22*50 | |
| 60 HZ | 246 | 8.7 | 3400 | ||||||
| 1800W / 2.5HP | 50 HZ | 270 | 9.53 | 2850 | |||||
| 60HZ | 323 | 11.4 | 3400 | ||||||
| 1500W / 2HP | 50L | 8Bar / 115PSI | 50 HZ | 206 | 7.28 | 2850 | 20/22 | 58*25*58 | |
| 60 HZ | 246 | 8.7 | 3400 | ||||||
| 1800W / 2.5HP | |||||||||
| 50 HZ | 270 | 9.53 | 2850 | ||||||
| 60 Hz | 323 | 1.4 | 340o | ||||||
| 1500W / 2HP | 24L | 8Bar/115PSI | 50 Hz | 206 | 7.28 | 2850 | 20/22 | 58*25*58 | |
| 60Hz | 246 | 8.7 | 3400 | ||||||
| 1500W / 2HP | 50L | 50Hz | 206 | 7.28 | 2850 | 28/30 | 72*33*68 | ||
| 60Hz | 246 | 8.7 | 3400 | ||||||
| 2200W / 3HP | 50 L | 8Bar /115PSI | 50 Hz | 412 | 14.55 | 2850 | 40/43 | 72*36*70 | |
Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
Features
We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
