• The travel assembly purchased from NABTESCO can offer strong power and good self-cleaning performance. It is fitted with heavy duty lengthened chassis and sloping track frame.
• Our crawler excavator is equipped with automatic idle system. When servo-valve stays in the neutral position for more than 5 seconds, CPU controller will stimulate stepping motor to reduce the swing speed to 1300rpm so as to reduce fuel consumption and noise.
• The crawler excavating machinery can also be fitted with quartering hammer and concentrate lubricating system, if required.

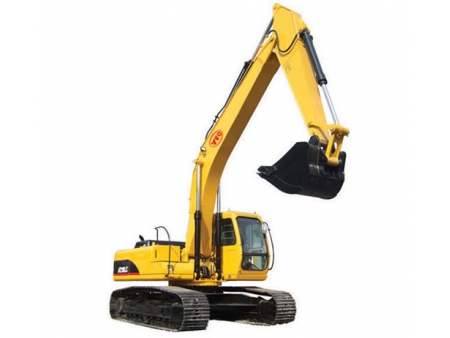

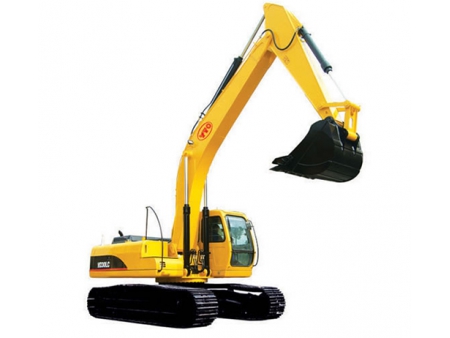

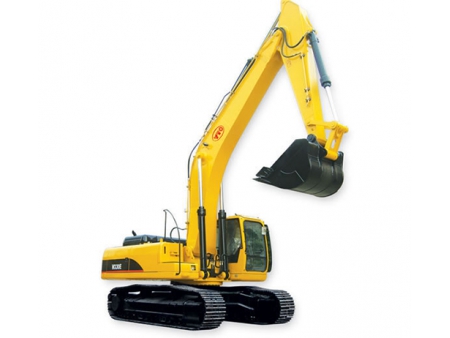

• SW210LC-5, SW230LC-5, and SW330Es crawler excavators differ from each other in traveling speed, swing speed, maximum vertical digging depth, maximum working radius and bucket capacity, etc. For example, the traveling speed of SW210LC-5 excavator is 5.4/3.1 km/h, of SW230LC-5 excavator is 5.5/3.5 km/h, of SW330Es excavator is 5.4/3.1 km/h. For more details, please refer to the parameter table.

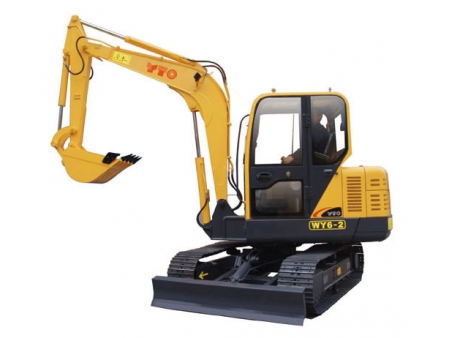

WY6/E65

• These crawler excavators are equipped with YANMAR engine which is energy saving and makes low noise. The exhaust emission conforms to Europe III standard.
• Their variable and open-circuit hydraulic system, main pump, motor and valve are all purchased from internationally well-known manufacturers and are all of high reliability.
• Monitor display and function control system are centralized in the intellectualized mini-type control panel. Furthermore, an acousto-optic alarm system is installed to ensure the normal operation.
• The construction machinery is small in size and can revolve for 360°, so it can work in narrow places.
• Various accessories are available, such as hammer, grab bucket, trimming-silt bucket, so as to meet different specific operational requirements.
• Some parameters of WY6 excavating machinery
  The rated power is 45KW. The rated speed is 2200 r/min. The maximum digging radius is 6100mm. The maximum digging height is 5330mm.
• Some parameters of E65 crawler excavator
  The rated power is 42.9 KW. The rear-end swing radius is 1650 mm. The maximum digging depth is 3820 mm.

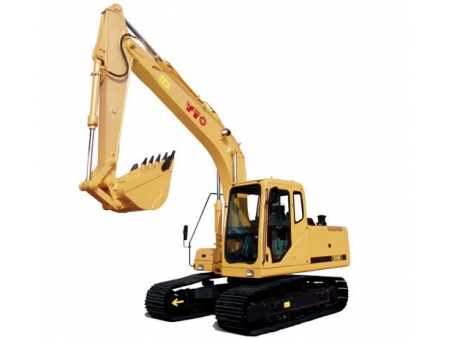

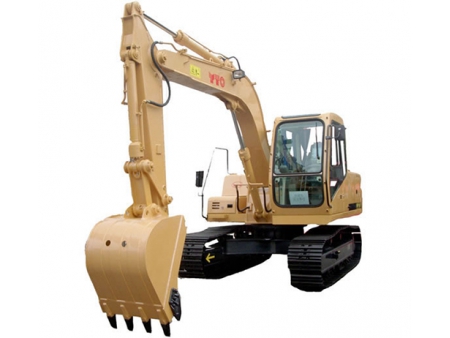

WY10B/E140

• The engine of our WY10B, E140 crawler excavator is manufactured by use of advanced British Ricardo technology. It features low fuel consumption and low running noise. Other engines are also available, upon request.
• The main parts and sealing parts of the hydraulic system are all of high quality and reliable performance.
• Various accessories are available, such as hammer, grab bucket, trimming-silt bucket, so as to meet different kinds of operating requirements.
• Since monitor display and function control system are centralized in the intellectualized control panel, centralized control can be achieved.
• Some parameters of WY10B crawler excavator The rated power is 60KW. The maximum digging height is 5620 mm. The bucket capacity is 0.45 m3. The maximum digging height is 5620 mm.
• Some parameters of E140 excavating machinery The rated power is 88KW. The rear-end swing radius is 2200 mm. The maximum digging radius is 8460 mm.

In addition to crawler excavator, we also offer crawler tractor, wheel loader, combine harvester, and road roller, etc. If you would like more information, please click on the specific product page or contact us directly.
