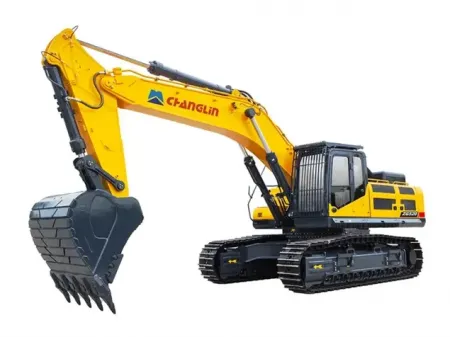

Crawler Excavator ZG520

Request a Quote

View All: http://cn-changlin.com/2-12-crawler-excavator.html

The ZG520 crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to accommodate various working environments, even in extremely harsh working conditions.

Operating weight: 50500KG
Rated power: 299kW
Bucket capacity: 3.2m³

Video

Operating weight (Kg)	50500
Rated bucket capacity (m³)	3.2
Overall length (mm)	11657
Overall width (Standard track shoe) (mm)	3340/3562 (over steps)
Overall height (mm)	3998
Standard track shoe width (mm)	600
Travelling speed (H/L) (Km/hr)	5.5/3.1
Swing speed (rpm)	9.4
Gradeability (Degree (%))	35 (70%)
Ground pressure (Kgf/cm²)	0.85
Maximum digging radius (mm)	10922
Maximum digging depth (mm)	6453
Maximum digging height (mm)	11020
Bucket digging force (kN)	290
Stick digging force (kN)	270
Diesel engine	Cummins QSM11
Type	6-cylinder in-line, four-stroke turbocharger
Rated power	280kW@2000rpm

The exclusive cab structure provides more foot space.
GRAMMER adjustable suspension seat is used in the excavator to adapt to uneven terrains.
The excavator cab is equipped with an openable roof hatch.
The inner surface of the hydraulic cylinder is treated through tumble finishing process to improve the surface roughness and hardness, therefore resulting in a greater wear resistance.
The piston rod is chrome and nickel-plated to prevent it get rusted while improving the abrasion resistance.
The excavator bucket adopts thickened steel plate, and the bucket teeth are strengthened and lengthened for greater wear resistance.
The strengthened box type structure is fully welded using low stress high tensile steel plate.
The high strength guard boards are installed as standard to protect the excavator components.
