Centerless Resin Bond Grinding Wheel
Request a Quote
This product has been discontinued and removed from our shelves.

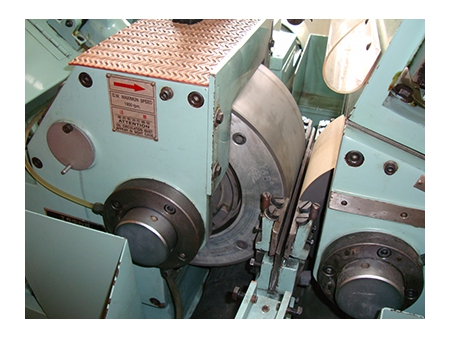

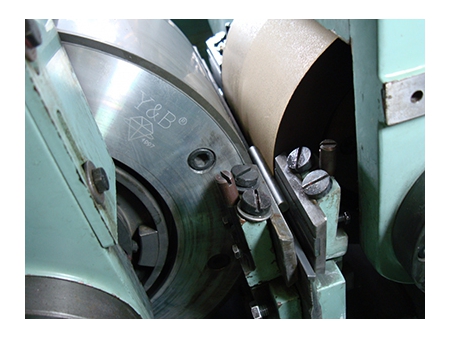

The centerless resin bond grinding wheel is used to grind Tungsten rods, ceramic rods and rods made of other materials. It is designed for use with centerless grinding machines in order to meet different grinding performance requirements.

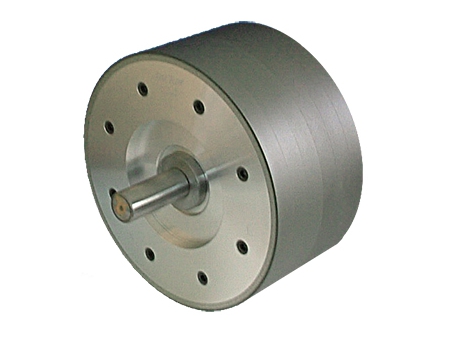

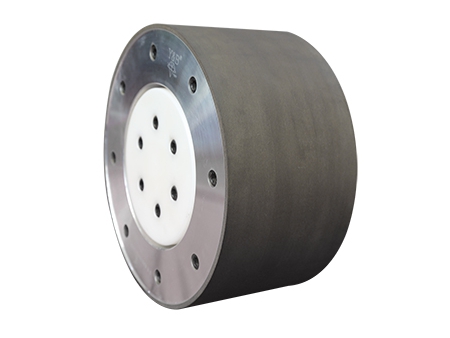

9A1 Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive thickness (mm) |
| 300(Type 12) | 100 | 120.03 | 6/10 |
| 150 | |||
| 350 | 125 | 127 | 6/10 |
| 400 | 150 | 203 | 5 |
| 450(Type 18) | 205 | 228.6 | 6 |
| 255 |
