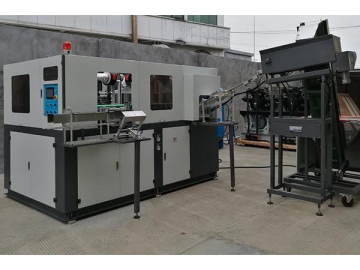

Economical Automatic Bottle Blow Molding Machine

Economical Automatic Bottle Blow Molding Machine
Economical Automatic Bottle Blow Molding Machine
Economical Automatic Bottle Blow Molding Machine
Economical Automatic Bottle Blow Molding Machine
Request a Quote

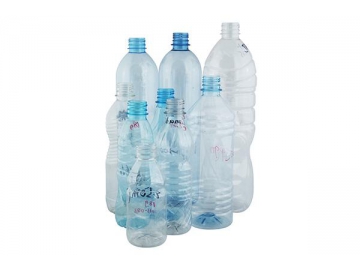

JND series of automatic bottle making machine is widely used to produce varieties of PET plastic container and package. This PET bottle making machine widely use in beverage industry, such as mineral water, pure water, juice, soda water, carbonated drinks, hot filling drinks, oil, cosmetic and hot infusion, etc. Controlled by micro-computer with each main process fitted with safety of self-locking, it is operated by only one worker and the total production is completed automatically. Its wide utilization and reliable performance make it become popular and attractive to all bottle manufacturers. It's strongest point is energy savings.

Adopting high pressure clamping, JND automatic stretch bottle making machine makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, it takes a big part to lower costs and improve efficiency.

Technical Parameters:
General Information JND-E2500
Clamping Force 150KN
Clamping Stroke 130MM
Max. Stretching Stroke 370MM
Bottom Moving Stroke 70MM
Number of Cavities 2 Cavity
Theoretical Output 2000 BPH
Electrical System
Voltage Standard 380v/3PH/50Hz or special order
Total Power (Full Loaded) 15KW
Container
Max. Container Volume 2L
Neck Diameter Range 16-38mm
Max. Container Diameter 100mm
Max. Container Height 360mm
Air system
Low Air compressor 8-10Bar
High Air compressor 30-40Bar
Dimension & Weight
Blow molding machine 2.3*1.4*2.7m
Preform Autoloader 1.3*0.85*2.4m
Net Weight 4T
General Information JND-E4000
Clamping Force 370KN
Clamping Stroke 130MM
Max. Stretching Stroke 370MM
Bottom Moving Stroke 70MM
Number of Cavities 4 Cavity
Theoretical Output 3500 BPH
Electrical System
Voltage Standard 380v/3PH/50Hz or special order
Total Power (Full Loaded) 25KW
Container
Max. Container Volume 2L
Neck Diameter Range 16-38mm
Max. Container Diameter 100mm
Max. Container Height 360mm
Air system
Low Air compressor 8-10Bar
High Air compressor 30-40Bar
Dimension & Weight
Blow molding machine 3.6*1.63*2.7m
Preform Autoloader 1.5*0.98*2.45m
Net Weight 4T
General Information JND-E5500
Clamping Force 565KN
Clamping Stroke 130MM
Max. Stretching Stroke 370MM
Bottom Moving Stroke 70MM
Number of Cavities 6 Cavity
Theoretical Output 4300 BPH
Electrical System
Voltage Standard 380v/3PH/50Hz or special order
Total Power (Full Loaded) 30KW
Container
Max. Container Volume 2L
Neck Diameter Range 16-38mm
Max. Container Diameter 100mm
Max. Container Height 360mm
Air system
Low Air compressor 8-10Bar
High Air compressor 30-40Bar
Dimension & Weight
Blow molding machine 5.0*1.83*2.7m
Preform Autoloader 1.5*0.98*2.45m
Net Weight 4T
