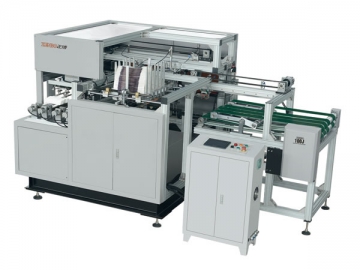

ZB100J Paper Bag Handle Pasting Machine
From manual work to automatic machine work, the ZB100J paper bag handle pasting machine means revolutionary development of your enterprise. It can implement excellent handle pasting at the fastest speed and get rid of adhesive failure as well as leakage problems by means of the perfect gluing system of hot melt glue.
Using this equipment, you can benefit a lot from short delivery cycle, low glue consumption, high quality and low cost. In addition, our product features compact structure, good appearance, easy operation, great durability, high efficiency and value. It is an ideal piece of auxiliary equipment for the kraft paper bag production machine, flat paper gift bag machine, and other paper bag making machines.
Functions
This paper bag handle pasting machine is a highly intelligent equipment. It is equipped with a servo motor and integrates photoelectric, mechanical, electrical and pneumatic devices as well as PLC control system.
Taking handle rope and paper bag without handle as the starting materials, the paper bag handle pasting machine can automatically carry out the process of handle feeding, bag feeding, gluing, pasting and output at one stroke. When the 450J roll-feeding paper bag making machine is equipped with this efficient paper bag equipment, it can considerably improve efficiency and save cost.
Technical Parameters
| output bag width | 180-450mm |
| output bag length | 180-450mm |
| Total power | 3kw |
| Machine size(L×W×H) | 3500×2000×1600mm |
| Production speed | 30-40pcs/min |
| Machine weight | 1.5T |
| Glue type | Hot melt glue |

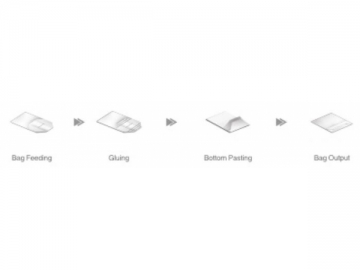

Technological Process

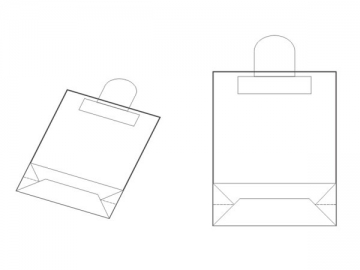

Production Sketch
| A | B | |
| Max. Size (mm) | 600 | 450 |
| Min. Size (mm) | 200 | 200 |

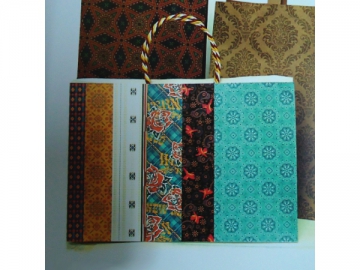

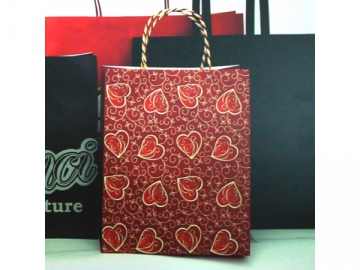

Finished Paper Bag
Suitable paper: Kraft paper
