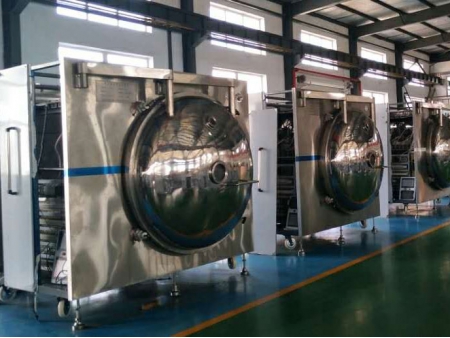

This microwave vacuum drying system is perfectly suited to dry pharmaceutical products and heat sensitive products, especially traditional Chinese medicine preparations. This drying chamber is able to deliver uniform heating and create a vacuum atmosphere that allows using a lower drying temperature, as well as offer the effects of disinfection and sterilization.

• Model：WZG-6
  1. Dehydration capacity：2-5kg/h
  2. Dimension: 1750×1850×1900 mm
  3. Machine weight: 500kg
  4. Drying temperature：20-60℃
  5. Input power of microwave：≤60KVA
  Output power of microwave：≥6KW(adjustable)
  Number of trays: 5pcs
  Conveying belt speed: 0.2-3 m/min
  Frequency：2450±50MHz
• Model：WZG-10
  1. Dehydration capacity：4-8kg/h
  2. Dimension: 2250×2300×2200mm
  3. Machine weight: 600kg
  4. Drying temperature：20-60℃
  5. Input power of microwave：≤60KVA
  Output power of microwave：≥10KW(adjustable)
  Number of trays: 7pcs
  Conveying belt speed: 0.2-3m/min
  Frequency：2450±50MHz
• Model：WZG-15
  1. Dehydration capacity：8-12kg/h
  2. Dimension: 2350×2500×2200mm
  3. Machine weight: 700kg
  4. Drying temperature：20-60℃
  5. Input power of microwave：≤60KVA
  Output power of microwave：≥15KW (adjustable)
  Number of trays: 7pcs
  Conveying belt speed: 0.2-3m/min
  Frequency：2450±50MHz
• Model：WZG-20
  1. Dehydration capacity：12-18kg/h
  2. Dimension: 2450×2600×2200mm
  3. Machine weight: 900kg
  4. Drying temperature：20-60℃
  5. Input power of microwave：≤60KVA
  Output power of microwave：≥20KW (adjustable)
  Number of trays: 8pcs
  Conveying belt speed: 0.2-3m/min
  Frequency：2450±50MHz
• Model：WZG-30
  1. Dehydration capacity：18-25kg/h
  2. Dimension: 2550×2700×2200mm
  3. Machine weight: 900kg
  4. Drying temperature：20-60℃
  5. Input power of microwave：≤60KVA
  Output power of microwave：≥30KW (adjustable)
  Number of trays: 10pcs
  Conveying belt speed: 0.2-3m/min
  Frequency：2450±50MHz

• Uniform drying
  Drugs are moved in reciprocating motion through multi-layer multi-chamber tunnel structure. The dynamic movement of drugs greatly enhances the uniformity of drug drying. Besides, the vibratory conveying belt enables the drugs to be transferred in an evenly manner, ensuring a uniform drying result.
• No pill cracking
  Based on the characteristics of medicine pills in drying process, the improved distribution of microwave power density along with long-distance low temperature drying structure allows the medicine pills to be naturally dried.
• Small footprint
  Multi-layer conveying structure significantly saves workshop area in comparison to single-layer conveying structure.
• No need for additional cooling unit
  Our microwave drying and sterilization machine adopts the design of integrated drying and cooling unit. Dried drugs can be naturally cooled down by passing through uniquely designed cooling unit, which can provide optimal cooling result while prevent the pill coating from color changing.
• High automation, reliable performance
  PLC control and image monitoring system realize visualization during the drying process. Special control units are fitted to prevent the leakage of microwave energy and no-load operation, achieving automatic temperature control. Alarm will be actuated when any failure occurs. The control cabinet is independently placed for safe operation.
