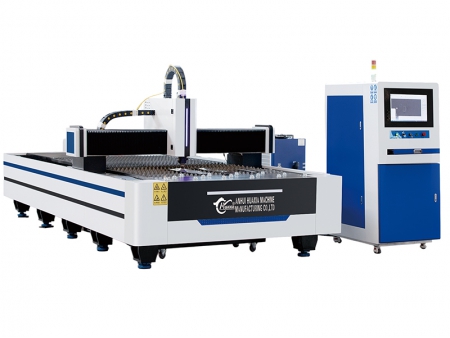

Laser Metal Cutting Machine
Request a Quote
- Laser Metal Cutting Machine
- Application
Application

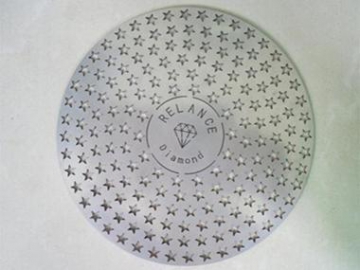

The laser metal cutting machine is used to cut and punch metal sheets and tubing, including stainless steel plates, carbon steel, alloy steel, spring steel, aluminum, silver, copper, and titanium. In sheet metal and hardware industries, the machine can partly replace punch and wire cutting to produce art characters, medical instrument parts, springs and more.
| Laser wavelength | 1070nm |
| Maximum average power of laser output | 300W/500W |
| Laser repetition rate | CW |
| Energy instability | ≤2% |
| Minimum cut line width | 0.1mm |
| Maximum cut speed | ≤84000mm/min (depends on material) |
| Maximum cut thick | 1-3mm |
| Continuous working time | ≥20h |
| Maximum cutting width | Y: 400mm, X: 500mm, Z: 100mm |
| Mechanical accuracy of table | ±0.03mm/m |
| Repeat positioning accuracy of X, Y and Z | ±0.02mm |
| Power requirement | Three phase five wire alternating current380V±5%, 50Hz±1% |
| Mesa bearing | 600KG |
| Equipment weight (estimated value) | 5000KG |
