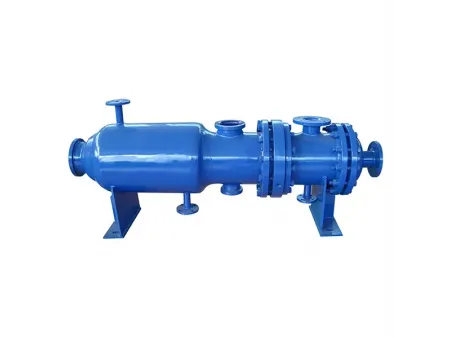

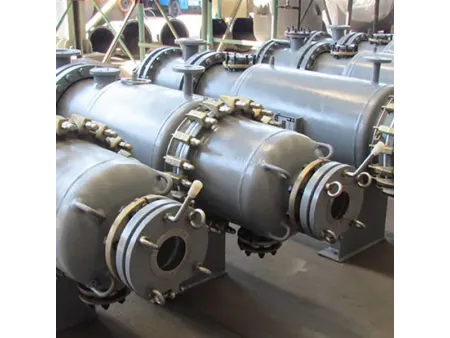

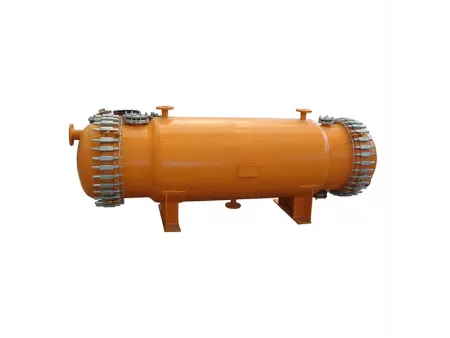

Glass-Lined Shell and Tube Heat Exchanger
Our newly developed glass-lined shell and tube heating exchanger has the advantage of high thermal efficiency, small volume and wide range of application, etc. It can be used for corrosive medium heating and cooling.

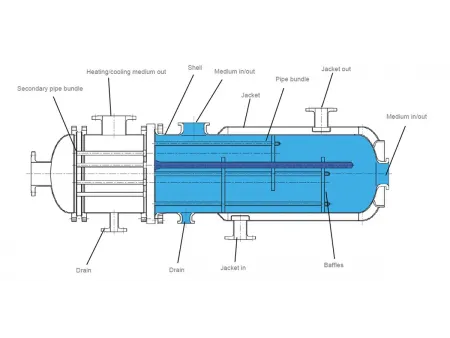

Main Features
- The glass-lined shell and tube heat exchanger is the glass lined equipment designed to transfer some of the heat from hot fluid to the cold fluid. Our glass lined heat exchanger is rapid in heat transfer, say 30% faster than ordinary heat exchanger.
- It has been widely used in chemical productions as heater, cooler, condenser, evaporator and reboiler.
- The shell and tube heat exchanger from Taiji is ideal for evaporating, heating, condensing and cooling corrosive materials. It is featured by high heat transfer efficiency, compact size and extensive applications.
- Based on customers' needs, the glass lined heat exchanger can be covered with stainless steel.
Technical Parameters
| Shell Side | Tube Side | Jacket | |
| Design Pressure (MPa) | -0.1/0.4 | -0.1/0.4 | -0.1/0.4 |
| Design Temperature (℃) | -19/200 | -19/200 | -19/200 |
| Specifications | Length of Heat Exchange Tubes (mm) | Amount of Heat Exchange Tubes | Tube Heat Exchange Area (m²) | Jacket Heat Exchange Area (m²) | Total Heat Exchange Area (m²) | Total Length(mm) |
| | 900 | 7 | 0.75 | 0.48 | 1.23 | -1650 |
| | 900 | 13 | 1.4 | 0.6 | 2.0 | -1660 |
| | 900 | 19 | 2.04 | 0.61 | 2.65 | -1700 |
| | 1100 | 19 | 2.5 | 0.82 | 3.32 | -1900 |
| | 1100 | 31 | 4.07 | 1.16 | 5.23 | -2125 |
| | 1300 | 31 | 4.81 | 1.42 | 6.23 | -2325 |
| | 1100 | 42 | 5.52 | 1.32 | 6.84 | -2140 |
| | 1300 | 42 | 6.52 | 1.61 | 8.13 | -2340 |
| | 1300 | 55 | 8.54 | 1.64 | 10.18 | -2360 |
| | 2000 | 55 | 13.13 | 2.77 | 15.9 | -3060 |
| | 2000 | 73 | 17.42 | 3.44 | 20.86 | -3170 |
| | 2000 | 109 | 25.94 | 4.16 | 30.1 | -3245 |
| | 2000 | 151 | 35.93 | 4.79 | 40.72 | -3270 |
Application

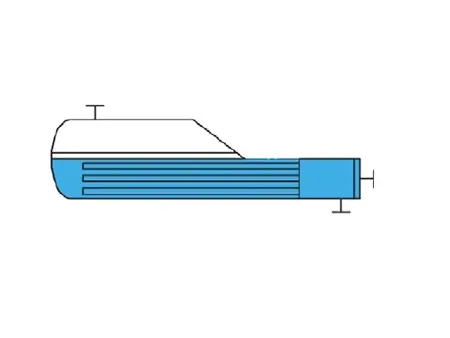

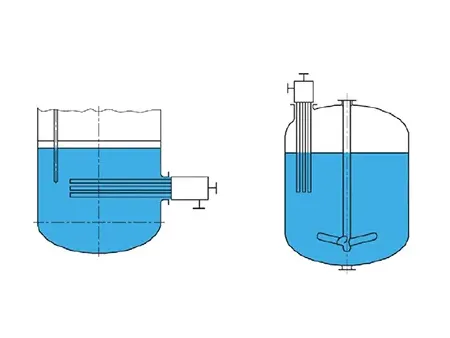

Application in ReboilerApplication in Reactor- No.100, Taishan Road, New Century Industrial Park, Guoli, Huantai District, Zibo City, Shandong Province
- 86-533-8409960
Taiji has decades of experience in the construction and delivery of glass-lined equipment for chemical, pharmaceutical, food processing industries, etc. We are certified for the fabrication of glass-lined products by ASME, PED and RTN. As an experienced glass-lined vessels manufacturer, we understand the selection, layout and manufacturing of glass lined process equipment and their spare parts is critical for the reliability of their production as well as essential for the secure process and storage of corrosive, poison and dangerous chemicals. Therefore, our glass lined steel equipment such as glass-lined reactor and storage tank, pressure vessel is the long-recognized standard in the chemical process industries. Taiji has the capability to adapt our services to your individual requirements.
