Shell and Tube Falling Film Evaporator
Request a Quote
A falling film evaporator, also referred to as a spray evaporator, is a type of heat exchanger that is quite comparable to a flooded evaporator, yet distinctly different. Refrigerant is sprayed from the top of falling film heat exchanger on to its tubes, resulting in the formation of a thin layer of refrigerant liquid film that covers the tubes. This thin film lowers the hydrostatic pressure during boiling and evaporating, which leads to an increase in the evaporator's heat exchange efficiency. In fact, its efficiency can be enhanced by up to 5 % more than that of a flooded evaporator.
Features
- Condensation droplets form a film that coats the heat exchanger tube, maximizing heat transfer efficiency by spraying from the top to the bottom.
- Refrigerant steam doesn't require any additional heating, allowing the evaporative temperature to elevate significantly.
- Compared with a flooded evaporator, the falling film evaporator boasting a 30% higher heat transfer coefficient and an astonishing 35% reduction in refrigerant charge.
- This evaporator is designed to work with a wide range of compressors, including screw, centrifugal, and magnetic bearing models.
- This liquid dispensing defoaming device has achieved the national patent,.
Specifications

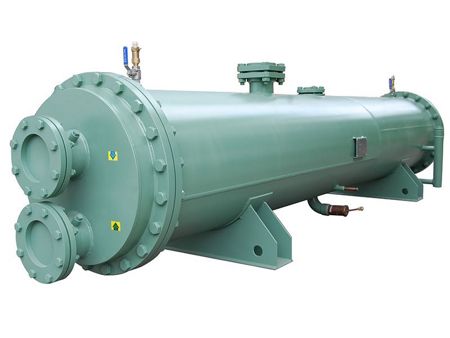

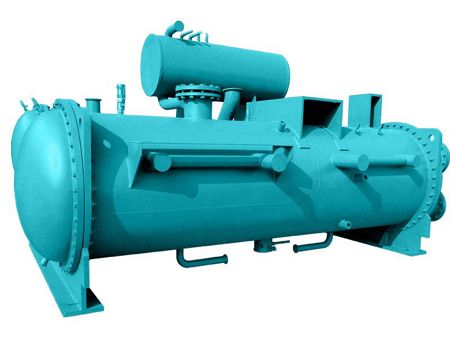

Shell & Tube Falling Film Evaporator, Standard Type
| Model | Nominal heat exchange capacity kW | Water inlet/outlet inch | Refrigerant inlet inch | Refrigerant outlet inch | Length A mm | Width B mm | Height C mm | Weight kg | |
| R22/R404A | R134A | ||||||||
| | 422 | 338 | 4" | 2" | 4" | 3467 | 720 | 880 | 800 |
| | 510 | 408 | 4" | 2" | 4" | 3467 | 720 | 880 | 820 |
| | 598 | 478 | 5" | 2" | 4" | 3467 | 720 | 880 | 850 |
| | 668 | 535 | 5" | 2-1/2" | 5" | 3518 | 850 | 978 | 1040 |
| | 774 | 619 | 6" | 2-1/2" | 5" | 3518 | 850 | 978 | 1100 |
| | 844 | 675 | 6" | 2-1/2" | 5" | 3518 | 900 | 978 | 1185 |
| | 897 | 717 | 6" | 2-1/2" | 5" | 4068 | 900 | 978 | 1220 |
| | 1020 | 816 | 6" | 2-1/2" | 5" | 4068 | 900 | 978 | 1240 |
| | 1249 | 999 | 6" | 2-1/2" | 5" | 4068 | 900 | 978 | 1296 |
| | 1460 | 1168 | 8" | 2-1/2" | 5" | 4068 | 920 | 990 | 1472 |
| | 1688 | 1351 | 8" | 2-1/2" | 5" | 4068 | 920 | 990 | 1998 |
Notes:
- 1. Rated heat exchange parameters: evaporation temperature Te=4.5 ℃, inlet water temperature Ti=12 ℃, outlet water temperature To=7 ℃, overheat temperature 5 ℃.
- 2. Refrigerant side max. allowable working pressure: 3.0 MPa, operating pressure: 2.5 MPa; water side max. allowable working pressure: 2.0 MPa.
- 3. Water pressure drop < 100 KPa.
