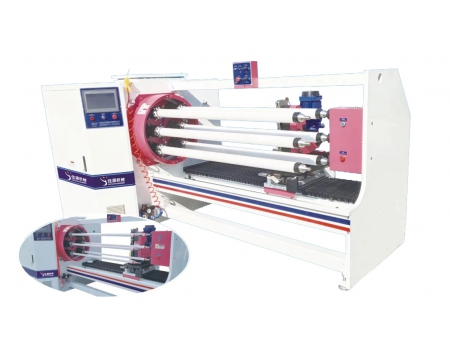

Log Slitter (Six-shaft)

Log Slitter (Six-shaft)
Log Slitter (Six-shaft)
Request a Quote
View All: http://converting-equips.com/3-4-automatic-log-slitter.html

Our six-shaft log slitter is designed with a maximum cutting speed of 60cuts/min, suitable for converting of various adhesive and non-adhesive tapes including clear tape, masking tape, electrical insulating tape, double sided tape, cleaning tape, kraft paper tape, foam tape, medical tape, fabric reinforced tape, etc.

Technical Data
Max. cutting speed 60cuts/min
Min. cutting width 2mm
Max. material diameter 140mm
Power supply 4W 3P 380V/50HZ
Power 5kw
Air pressure 0.63mpa
Dimension (L*W*H) 2900*2000*1700mm
Weight 2400kg
Related products
Log Slitter (Ten-shaft)
Log Slitter (Ten-shaft)

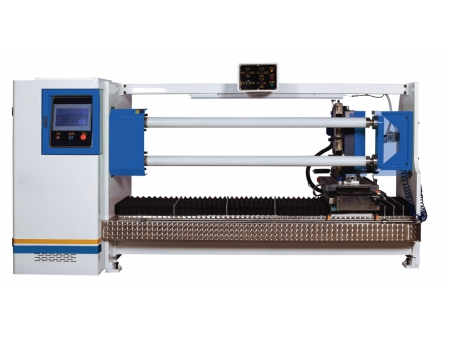

LY-703 Log Slitter (Double-shaft)
LY-703 Log Slitter (Double-shaft)

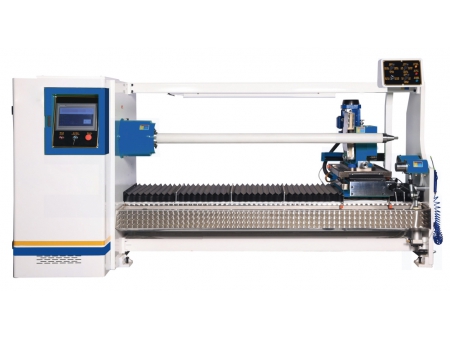

LY-701 Log Slitter (Single Shaft)
