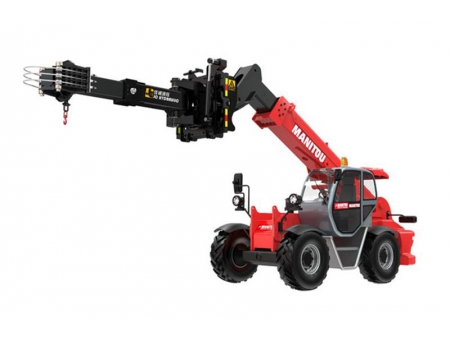

Telescopic handler with hydraulic cylinder clamp

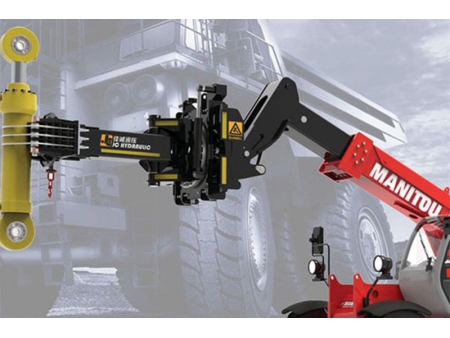

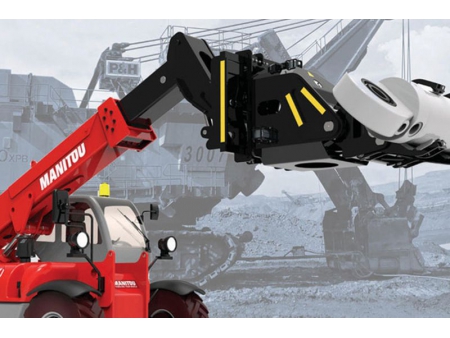

JC-Hydraulic cylinder manipulator is applied to install or dismantle front and rear suspension cylinders and hoist cylinders of open-pit mining dump trucks. The manipulator chassis comes from overseas telehandlers’ brands. Its compact structure and mobility enables it to handle cylinders in limited space close to mining vehicles, boosting the handling efficiency and saving the labor and material costs. The manipulator is an industry-leading cylinder handling machines.
Features (Middle Cylinder Manipulator)
- 18 combined movements;
- Six combined movements controlled remotely;
- Reliable holding by steel rope.
Technical Parameters
| Rated Load | 4000kg (retracting)/1200kg (reaching) |
| Clamping Range | 250-530mm |
| Max Capacity | 4000 kg / 1200 kg |
| Combined Head Rotation | ±57.5° vertical |
| Side Shift | ±150mm |
| Extendable Range | 931mm |
| Jib Orientation | ±15° |
| Overall Dimensions | 3800 (reaching)*1470*1515mm |
