Applications of Wood Flour Mill LHK

Our wood flour mills are primarily used for superfine grinding of fiber texture material and sawdust, etc. As a kind of impact mill, it can also be used for pulverizing of non-metallic materials, feeds, agricultural products, and chemical products, etc. (Note: the Mohs hardness of those materials should be lower than 6).

Features of Wood Flour Mill LHK
  • Energy saving: our wood flour mills can save as much as 30%-40% energy comparing with traditional grinding mills.
  • Superfine grinding: finished product fineness could be 600mesh because our wood flour grinding mills are equipped with high precision classifiers.
  • Material fineness is adjustable.
  • Long service life: wear resistance materials are adopted for making wearing parts.
  • User-friendly design enables a convenient clean and maintenance.
  • Negative pressure production guaranteed a better production environment.
Working Principle of Plastic Pulverizer LHD

Firstly feed material into grinding chamber, and then they will be pulverized under the shearing force generated between high speed rotary rotor disc and stator disc.
Finished powders will be sent to collection system.

Working Principle of Wood Flour Mill LHK

After materials are fed into milling chamber, they will be pulverized under the shear force and extrusion force generated between grinding roller and grinding ring. And classifiers on the top of these impact mills will collect qualified powders.

Parameters of Wood Flour Mill LHK
Item \ Model LHK - 40 LHK - 60 LHK - 90
Max. material size Sawdust 5-15 mesh
Granules ≤20mm
Finished product size Sawdust 100-600 mesh
Granules 100-1250 mesh
Max. Production capacity Sawdust 200kg/h 300kg/h 400kg/h
Granules 700 kg/h 1000kg/h 1500kg/h
Main motor power 22kw 30kw 45kw
Process Flow of Wood Flour Mill LHK
Flow Chart I

1. Storage hopper
2. Screw conveyor for material feeding
3. Main machine of wood flour mill
4. Classifier

5. Cyclonic collector
6. Induced draft fan
7. Pulsed dust collector


Flow Chart II

1. Storage hopper
2. Screw conveyor for material feeding
3. Main machine of wood flour grinding mill
4. Classifier

5. Cyclonic collector
6. Pulsed dust collector
7. Induced draft fan

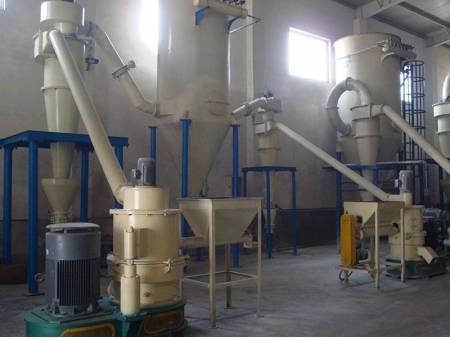

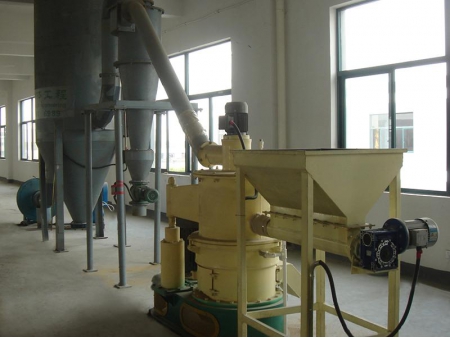

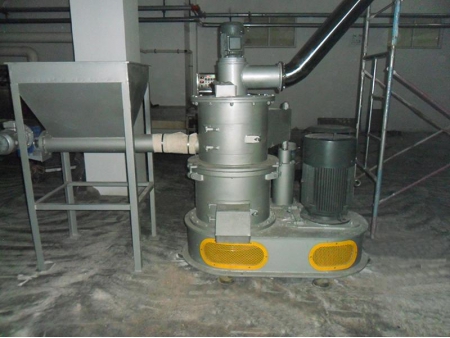

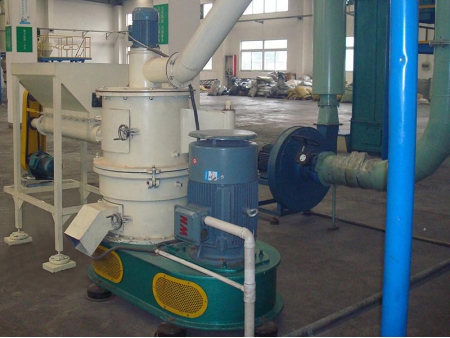

Work site
