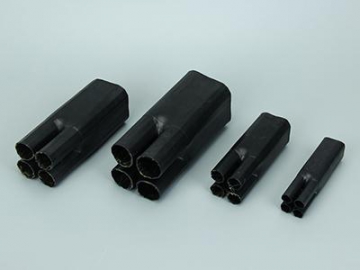

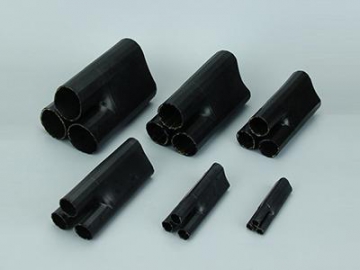

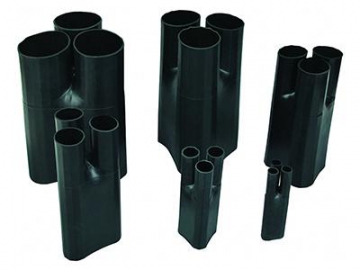

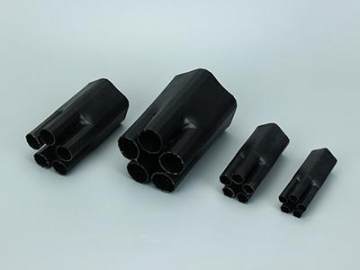

1kV Two Core to Five Core Heat Shrink Breakout Boot
Request a Quote
The heat shrink breakout boot is made of a cross-linking polyolefin and hot-melt adhesive, and is placed on the core branch of multiple core cables in order to offer a full coverage when transitioning from a single cable to multiple cables, and will shrink when heated. The primary material is a soft and elastic, pollution free EVA.
Product index
1kV two core heat shrinkable branch tubes| Type and specification | Inner hole size (before shrinking / after shrinking) | Cross sectional area of applicable cable (mm2) | |
| Large end | Small end | ||
| ZT-2.0 | 21/12 | 11/3.0 | 10-16 |
| ZT -2.1 | 28/17 | 11/5.4 | 25-50 |
| ZT -2.2 | 47/23 | 26/8.0 | 70-120 |
| ZT -2.3 | 72/31 | 40/11.8 | 150-240 |
| ZT -2.4 | 88/43 | 38/13.8 | 300-500 |
| Type and specification | Inner hole size (before shrinking / after shrinking) | Cross sectional area of applicable cable (mm2) | |
| Large end | Small end | ||
| ZT -3.0 | 46/21 | 11/15 | 10-16 |
| ZT -3.1 | 54/22 | 24/6.4 | 25-50 |
| ZT -3.2 | 60/28 | 28/7.8 | 70-120 |
| ZT -3.3 | 73/32 | 30/10 | 150-240 |
| ZT -3.4 | 88/43 | 38/13.8 | 300-500 |
| Type and specification | Inner hole size (before shrinking / after shrinking） | Cross sectional area of applicable cable (mm2) | |
| Large end | Small end | ||
| ZT -4.0 | 34/15 | 13/3.5 | 10-16 |
| ZT-4.1 | 43/22 | 15/5.5 | 25-50 |
| ZT -4.2 | 65/29 | 26/9 | 70-120 |
| ZT-4.3 | 82/36 | 33/12 | 150-240 |
| ZT -4.4 | 90/45 | 40/15 | 300-500 |
| Type and specification | Inner hole size (before shrinking / after shrinking) | Cross sectional area of applicable cable (mm2) | |
| Large end | Small end | ||
| ZT -5.0 | 35/21 | 11/3.5 | 10-16 |
| ZT -5.1 | 52/25 | 16/15.5 | 25-50 |
| ZT -5.2 | 80/40 | 26/9.5 | 70-120 |
| ZT -5.3 | 95/44 | 33/12 | 150-240 |
| ZT -5.4 | 100/50 | 40/18 | 300-500 |
