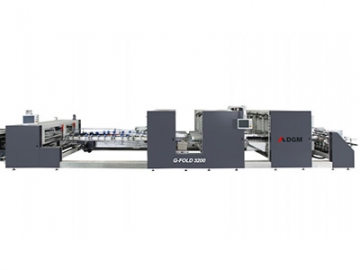

High Speed Folding and Gluing Line 3200 type Carton Folder Gluer
Request a Quote
High Speed Carton Equipment Manufacturer
Description
The high speed folding and gluing line’s 3200 type carton folder gluer has a maximum blank width of 1550mm. The standard version includes two lower gluing units, one on the left and the other on the right, two upper electronic gluing system, one for hotmelt with one-gun and the other for cold flue with three guns.
This series folding & gluing system is installed with a feeder driven by an independent motor to process either one sheet or two sheets. It will accurately join two carton pieces through the use of a lateral squaring device, making it ideal for packaging 3 layer or 5 layer corrugated boards.
ApplicationThe G-FOLD 3200–AC without pre-folding section is intended for straight-line boxes, crash-lock bottom boxes and other box types.
Produced box type- Straight-line box A: 550 - 3200 mm
B: 100 - 1300 mm - crash-lock bottom box A: 650 - 3200 mm
B: max. 1300 mm
C: min. 120 mm
D: 40 - 200 mm - 2-pieces box A: min. 550 mm
B: 100 - 1300 mm

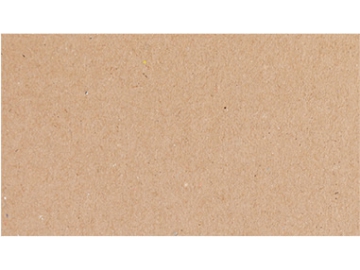

- Carton board

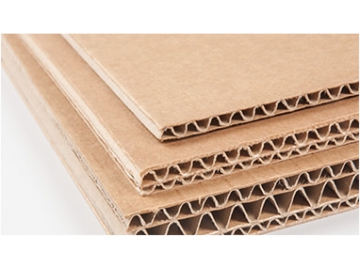

- Corrugated board
Processed materials
| Max. Carton board | 800 g/m² |
| Corrugated flute type | E, C, B, AB, 3-layer or 5-layer |
| Max. speed | 200 m/min |
| Inching speed | 20 m/min |
| Max. Thickness of folded box | 20 mm |
| Max. Blank width | 550-1550mm per sheet |
| Feeding conveyor belt number | 10 pieces |
| Feeding conveying r belt width | 60mm |
| Total press conveyor length | 6.5 m |
| Effective press conveying length | 4.7 m |
| Length | 20.5 m |
| Width | 3.9 m |
| Height | 1.95 m |
| Weight | 15.5 Ton |
| Electrical connected load | 25 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 30 m³/h |
| Air tank capacity | 120 L |

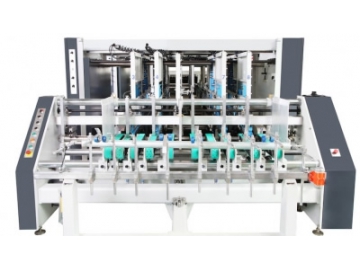

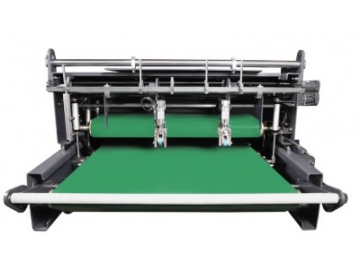

- Feeder section

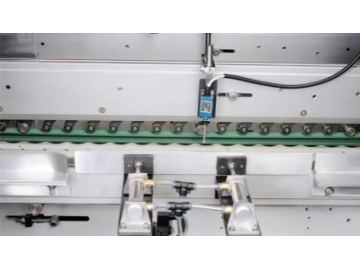

- Splice section

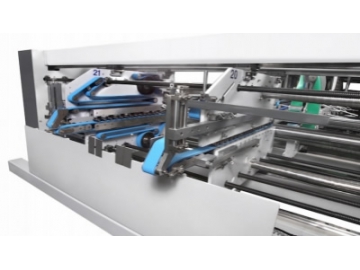

- Lock bottom section

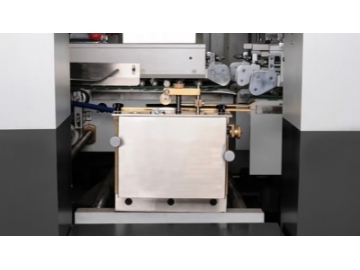

- Lower gluing unit

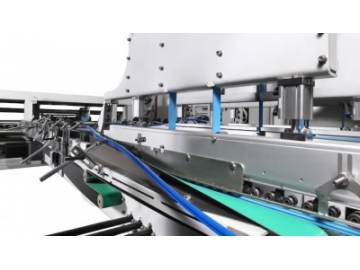

- Folding and closing section
- Trombone section
- Press section
