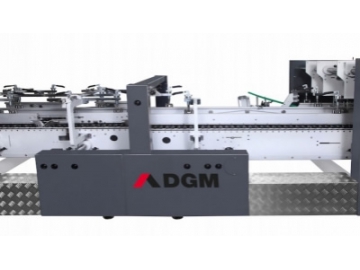

The box and carton folding gluing line’s 1000 type is a multifunctional packaging machine. With a maximum blank width of 1100mm, it can glue small sized boxes as well as large size cartons.

This folder-fluer has an excellent component interchangeability, and debugging accessories can be easily installed and disassembled during a short set up period and fast changeover.

Application

The TECHNOFOLD 1100 – AC without pre-folding section is used for the production of straight-line boxes, crash-lock bottom boxes, double-wall boxes and more.

The TECHNOFOLD 1100 – PC is used to produce straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.

The TECHNOFOLD 1100– SL is used to manufacture straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes and other box types.

The TECHNOFOLD-1100 is specially designed for small-to-medium post-print packaging companies to manufacture small-to-medium sized boxes of different materials and types.

Produced box type

Straight-line box A: 160 - 1100 mm
B: 100 - 900 mm
E: 70 - 540 mm
crash-lock bottom box A: 170 - 1100 mm
B: 170 -900 mm
E: 80 - 540 mm
double-wall box A: 200 - 1100 mm
B: 100 - 800 mm
D: 30 - 150 mm
E: 80 - 950 mm
4-corner box A: 150 -1100 mm
B: 160 - 800 mm
H: 25 - 150 mm
4-corner box with lid A: 270 -1100 mm
B: 160 - 450 mm
H: 25 - 150 mm
6-corner box A: 270 - 1100 mm
B: 160 - 450 mm
H: 25 - 150 mm

Processed materials

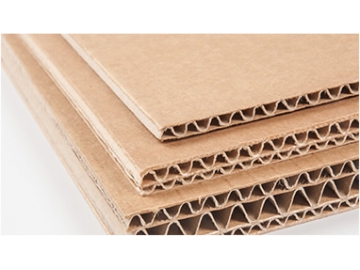

Carton board
Corrugated board

Parameters
Processed materials

Max. Carton board	800 g/m²
Corrugated board type	N, E, F& B

Capacity

Max. speed	300 m/min
Inching speed	30 m/min
Max. Thickness of folded box	12 mm
Max. Blank width	1100 mm
Lower belt width	25mm
Outer belt width	30mm
Total press conveyor length	5.5 m
Effective press conveying length	3.1 m

Size and Weight

Item	AC	PC	SL
Length	14.7 m	17 m	17 m
Width	1.88 m	1.88 m	1.88 m
Height	1.5 m	1.5 m	1.5 m
Weight	8 Ton	9 Ton	9.2 Ton

Installation

Item	AC	PC	SL
Electrical connected load	16 kW	20 kW	26 kW
Compressed air	6 bar	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h	10 m³/h
Air tank capacity	60 L	60 L	60 L

folding and gluing system components

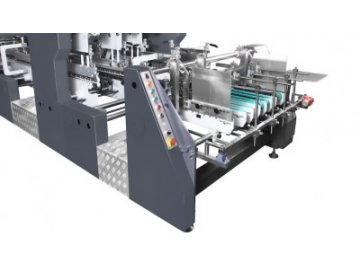

Feeder section

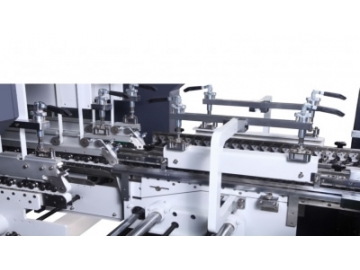

Side register table

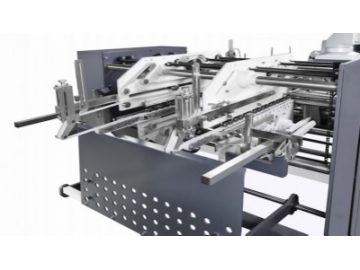

Pre-folding section

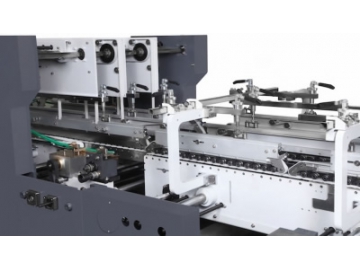

Lock bottom section

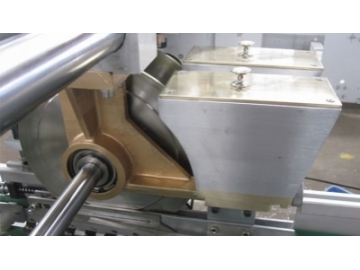

Lower gluing unit
Upper gluing unit

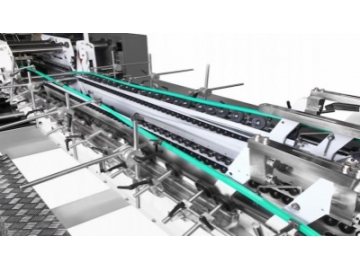

Folding and closing section
Trombone section
Press section
Back-folding device
