Speed Reducer for Glass-Lined Reactor

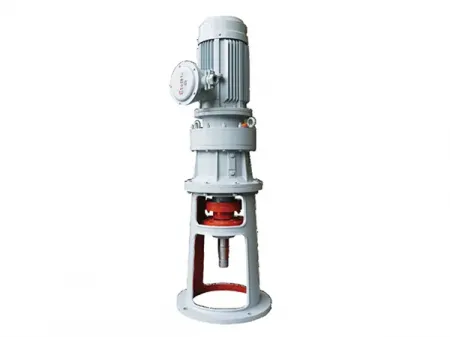

Cycloidal Speed Reducer
This type of speed reducer is featured by high transmission efficiency, exceptional stability, low noise, compact structure, reliable operation and long service life etc. Our glass-lined reactor employs this transmission device and is fitted with different power models according to the equipment capacities.
| Power KW | Reducer | Speed | Reactor | ||
| i =11 | i =17 | i =23 | |||
| 0.75 | BLD-1 | 130 | 85 | 63 | 50L -100L |
| 1.1 | BLD-1 | 130 | 85 | 63 | 200L |
| 3 | BLD-2 | 130 | 85 | 63 | 300L -800L |
| 4 | BLD-3 | 130 | 85 | 63 | 1000L -2000L |
| 5.5 | BLD-3/4 | 130 | 85 | 63 | 2500L -5000L |
| 7.5 | BLD-4 | 130 | 85 | - | 3000L -6300L |
| 11 | BLD-4 | 130 | 85 | - | 8000L |
| 11 | BLD-5 | 130 | 85 | - | 10000L |
| 15 | BLD-5 | 130 | 85 | - | 12500L |
| 18.5 | BLD-6 | 130 | 85 | - | 15000L -20000L |

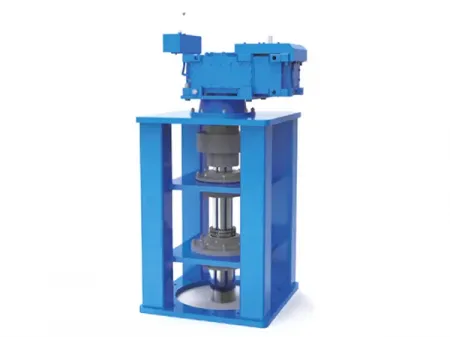

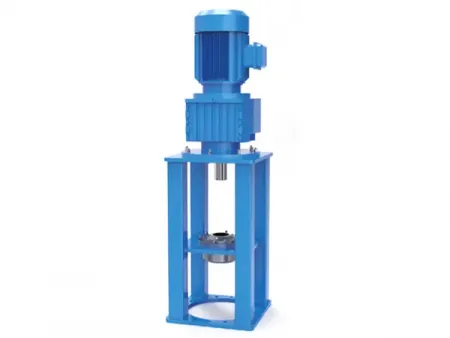

Helical Gear Speed Reducer
With optimized and modular design, the worm gear reducer features compact size, light weight, large transmission torque, smooth and stable start, fine gear ratio grading, etc. According to customers' requirements, it can be installed at the different positions on the glass lined reactor. Gear is made of superior high strength alloy steel with surface carburizing and hardening treatment, ensuring strong bearing capacity and notable durability.
