Oil Free Silenced Vacuum Pump Manufacturer

Oil Free Silenced Vacuum Pump

Request a Quote

View All: http://aircomprs.com/4-silent-oil-free-vacuum-pump.html

Air Displacement (L/min): 66～624
Tank Volume(L): 30~180
Speed (R.P.M): 1440
Power (W): 550~6000 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

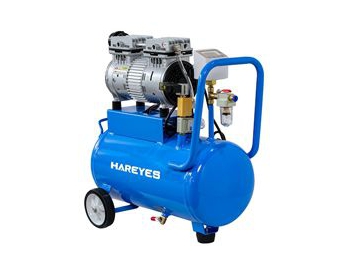

VC550DY-30L

Silent Oil Free Vacuum Pump 550W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

550 -0.93 L / Min CFM 53*30*55 60*27*56

66 2.33

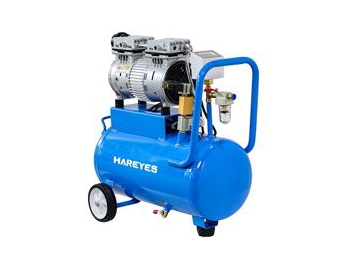

VC550DE-30L

Silent Oil Free Vacuum Pump 550W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

550 -0.98 L / Min CFM 53*30*55 60*27*56

66 2.33

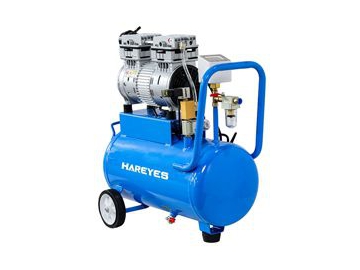

VC750DY-30L

Silent Oil Free Vacuum Pump 750W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

750 -0.93 L / Min CFM 54*30*58 60*27*57

81 2.86

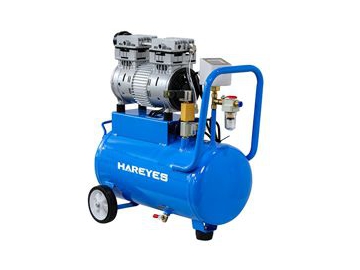

VC750DE-30L

Silent Oil Free Vacuum Pump 750W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

750 -0.98 L / Min CFM 54*30*58 60*27*57

81 2.86

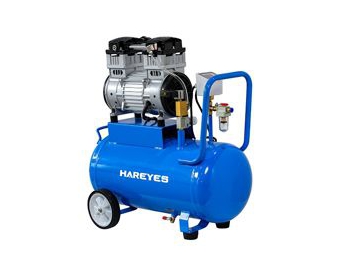

VC1500DY-40L

Silent Oil Free Vacuum Pump 1500W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

1500 -0.93 L / Min CFM 65*35*68 68*31*67

156 5.51

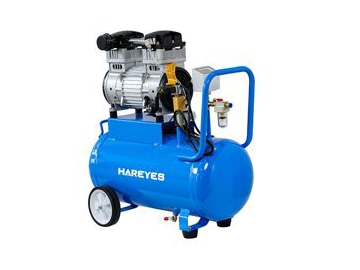

VC1500DE-40L

Silent Oil Free Vacuum Pump 1500W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

1500 -0.98 L / Min CFM 65*35*68 68*31*67

156 5.51

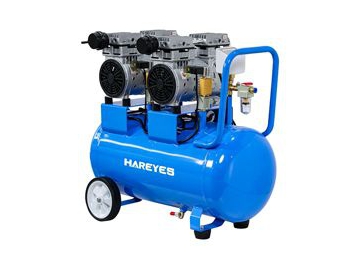

VC1500DY-50L

Silent Oil Free Vacuum Pump 1500W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

1500 -0.93 L / Min CFM 66*37*62 72*33*61

270 9.53

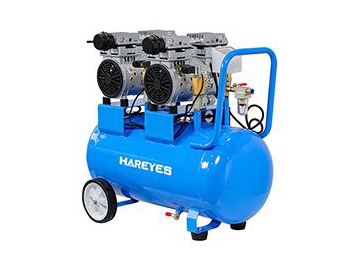

VC1500DE-50L

Silent Oil Free Vacuum Pump 1500W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

1500 -0.98 L / Min CFM 66*37*62 72*33*61

270 9.53

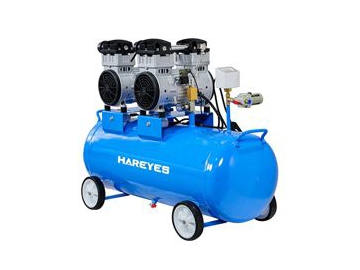

VC3000DY-100L

Silent Oil Free Vacuum Pump 3000W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

3000 -0.93 L / Min CFM 98*37*75 105*37*74

312 11.02

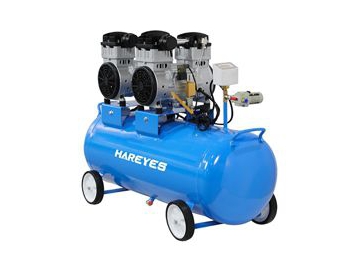

VC3000DE-100L

Silent Oil Free Vacuum Pump 3000W

Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)

3000 -0.98 L / Min CFM 98*37*75 105*37*74

312 11.02

Model	Power (W)	Tank Volume	Degree of Vacuum	Voltage / Frequency	Air Extraction		Speed	N.W.	Overall Dimensions	Package Size
Model	Power (W)	(L)	(kPa)	Voltage / Frequency	L / Min	CFM	(R.P.M)	(kg)	(cm)	(cm)
VC550DY-30L	550	30	-0.93/one stage	220V/50HZ	66	2.33	1440	21	533055	602756
VC550DE-30L	550	30	-0.98/two stage	220V/50HZ	66	2.33	1440	21	533055	602756
VC750DY-30L	750	30	-0.93/one stage	220V/50HZ	81	2.86	1440	21	543058	602757
VC750DE-30L	750	30	-0.98/two stage	220V/50HZ	81	2.86	1440	21	543058	602757
VC1500DY-40L	1500	40	-0.93/one stage	220V/50HZ	156	5.51	1440	32	653568	683167
VC1500DE-40L	1500	40	-0.98/two stage	220V/50HZ	156	5.51	1440	32	653568	683167
VC1500DY-50L	1500	50	-0.93/one stage	220V/50HZ	270	9.53	1440	37.8	663762	723361
VC1500DE-50L	1500	50	-0.98/two stage	220V/50HZ	270	9.53	1440	37.8	663762	723361
VC3000DY-100L	3000	100	-0.93/one stage	220V/50HZ	312	11.02	1440	66	983775	1053774
VC3000DE-100L	3000	100	-0.98/two stage	220V/50HZ	312	11.02	1440	66	983775	1053774
VC4500DY-160L	4500	160	-0.93/one stage	220V/50HZ	468	16.53	1440	106.4	1204086	1284684
VC4500DE-160L	4500	160	-0.98/two stage	220V/50HZ	468	16.53	1440	106.4	1204086	1284684
VC6000DY-180L	6000	180	-0.93/one stage	220V/50HZ	624	22.03	1440	131.6	1384087	1464683
VC6000DE-180L	6000	180	-0.98/two stage	220V/50HZ	624	22.03	1440	131.6	1384087	1464683

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Features

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
