Slitter Rewinder

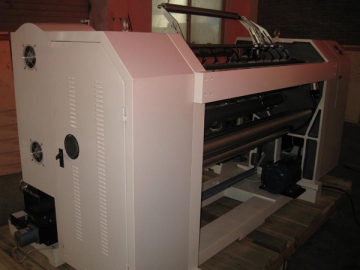

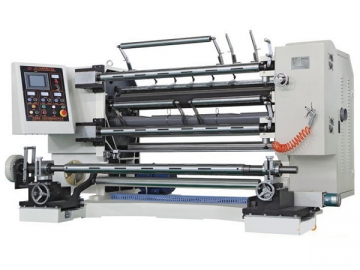

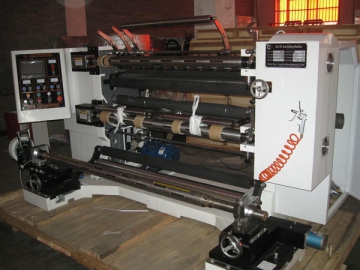

The automatic slitter rewinder is a newly designed vertical slitting and rewinding machine. It conducts winding and unwinding operations at the same side. With heavy duty, this product can cut large sized rolled film or paper into small sized ones with multiple blades.

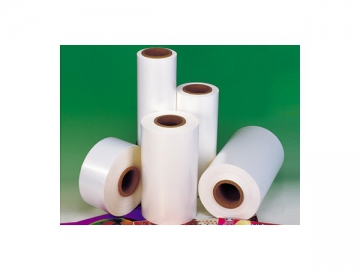

This slitter rewinder has two models in line with the width of the jumbo roll. The CWFQL-1100 range of roll slitting machine and rewinding machine is suitable for the unwound raw material film with the width being 1100mm while the CWFQL-1300 is a good choice for the unwound film being 1300mm in width. The latter model can cut the whole film into many small sized rolled films. Additionally, the minimum width of the slit rolled film is 50mm.
Technical Specifications| Model | ||
| Max. Width of Jumbo Roll | 1100 | 1300mm |
| Max. Diameter of Jumbo Roll | Φ 600mm | Φ 600mm |
| Width of Final Roll | 50~1100mm | 50 ~1300mm |
| Max. Rewinding Diameter | Φ 500mm | Φ 500mm |
| Slitting Speed | 180m/min | 180m/min |
| Tolerance of EPC | <±0.5mm | <±0.5mm |
| Total Power | 3.7kW | 4.5kW |
| Equipment Weight | 1550kg | 1850kg |
| Overall Dimension (L×W×H) | 2000×1100×1450mm | 2400×1100×1450mm |
Note: Our ceaseless perfection of existing equipment as well as development of new functions can possibly lead to the change of technical parameters, performance characteristics as well as appearance. Please understand if you are not given further notice.
