Dry Plug-in GIS Termination, 72.5kV-252kV

Dry Plug-in GIS Termination, 72.5kV-252kV
Dry Plug-in GIS Termination, 72.5kV-252kV
Request a Quote
Scope of Application
  • Model: WYJZGGC
  • Suitable for indoor use
  • Rated voltage: 72.5kV (applicable to 120-1600mm²)
    126kV (applicable to 240-1600mm²)
    145kV (applicable to 240-1600mm²)
    252kV (applicable to 400-2500mm²)
Download
Features
  • The termination connects the cable in a plug-in style, simplifying the installation and maintenance;
  • Compact structure, light weight, and small volume, greatly reducing the installation space;
  • The stress cone of the cable termination is made of imported EPDM through rubber injection molding, and is secured into the epoxy insulator by a spring cone;
  • In terms of the stress cone surface, measures have been taken to solve the problems caused by aging-induced relaxation and poor contact between the stress cone and the out semi-conducting layer of the cable, ensuring the long-term and stable operation of the cable termination;
  • Dry structure avoids any leakage;
  • This cable termination can be used to connect the power cable with the transformer;
  • After adding an extension rod, the short-type plug-in GIS terminal can be used in conjunction with GIS equipment that is compatible with the long-type GIS termination;
  • Test standard of IEC 60840, IEC 62067, and GB/T 18890;

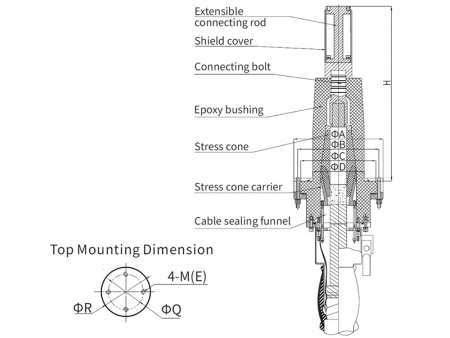

Termination Dimensions
Max. system Voltage 72.5kV 126kV 145kV 252kV 252kV
A (mm) 300 350 350 500 620
B (mm) 270 320 320 475 582
C (mm) 245 298 298 454 559
D (mm) 185 210 210 340 340
E (mm) 10 10 10 12 12
H (mm) 310/583 470/757 470/757 620 920
Q (mm) 80 80 80 110 110
R (mm) 110 110 110 160 200
Notice When Ordering:
  • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
  • All GIS termination and GIS composite apparatus produced by our company are strictly comply with IEC 62271-209 and GB/T 22381.When placing an order, please provide the necessary information, such as the executive standards and interface height or assembly drawing of the GIS composite apparatus, to ensure that the corresponding dimensions match up.
