High Speed Blister Packaging Machine , DC-688
Request a Quote
Liquid filling and sealing machine for use with blister packs

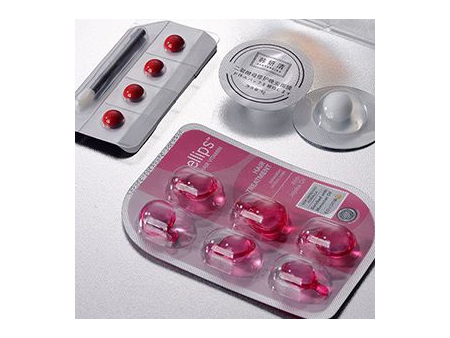

The DC-688 high speed blister packaging machine is the ideal solution for cost-effective and efficient blister packaging of liquid dosages. It is widely used, enabling it to be used with various forms of automatic feeding, ideal for the packaging of skin care products and cosmetics. With a wide molding range and double-channel molding, it is perfect for large scale production.
Specifications
| Max. width of film roll | 330mm |
| Max. diameter of film roll | 500mm (including 76mm core diameter) |
| Packing speed | Max. 25 cycles/min |
| Air consumption | 240NL/min (within ±10%) |
| Power consumption | Approximately 8KVA |
| Packaging material | PVC, PVC/PVDC, PVC/Aclar, etc. |

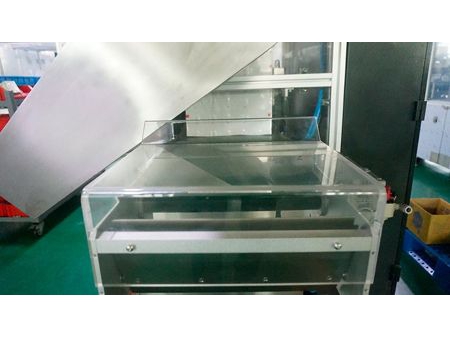

Safety door
This inclusive safety door provides door opening and closing protection, guaranteeing the operator to use the blister packaging machine safely and efficiently in accordance with planned operation procedures. It also helps to prevent dust and other particles from entering.Base film placing table

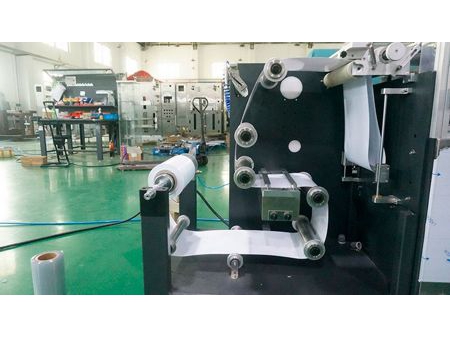

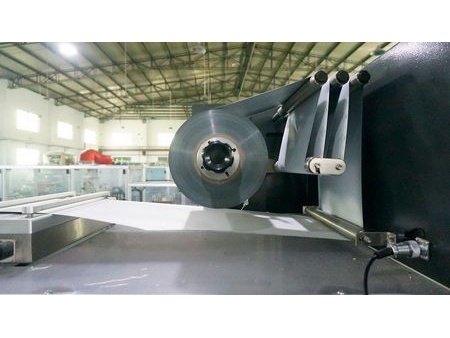

Replacing of film roll is extremely convenient. Without using any tools, the positioning of the packaging material can be completed quickly, allowing for reduced replace material time. This unique lift-and-place replacement type is useful for large, weighty film rolls while simultaneously providing a reliable and effortless process when dealing with packaging material.Base film guide roller

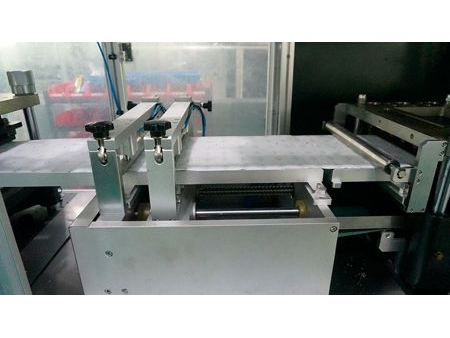

Stainless copper rollers offer protection against wear and tear caused by friction during packaging material operation, plus adjustable fixed width positioning for precise, steady performance.Base film breakage detection
Connecting the film is easy and efficient thanks to the positioning, fitting, aligning and other fast-connection functions it comes with.Static elimination device
The decreased static electricity of the base film greatly reduces the accumulation of dust, resulting in a superior end product.

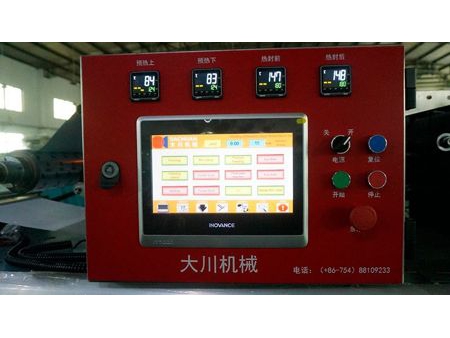

- PLC with English interface
- Base film roller (with static elimination device)

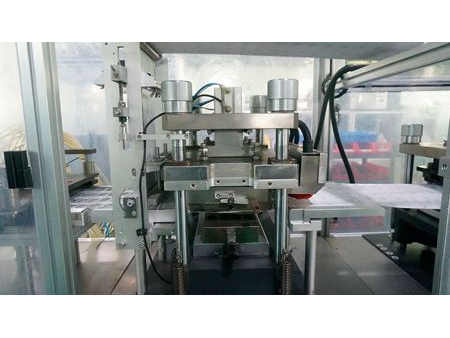

- Base film thermoforming and cooling device

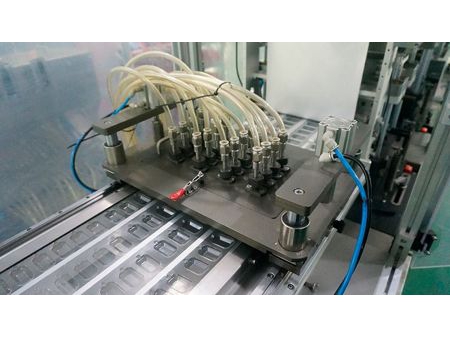

- Feeding device
- Dot-and-dash line cutter
- Top film placement rack
- Top film heat sealing
- Film Puller

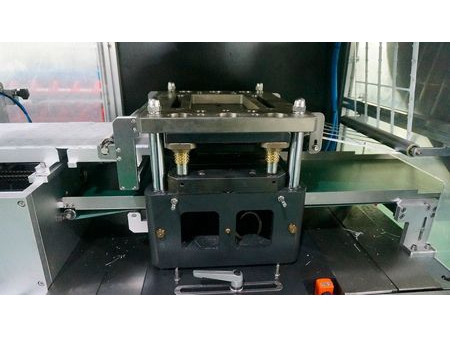

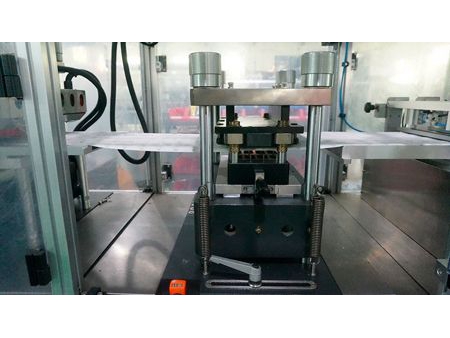

- Cutter (forming device)
- Waste film cutting and discharging device
- Finished conveyor belt
