Narrow Tractor / Orchard Tractor, 75-95HP
Request a Quote
YTO-ELX754F/ELX854F/ELX954F
Features
- The series of narrow tractors with a compact design are particularly built for orchard chores;
- The 4-cylinder diesel engine with two-stage parallel turbo features high horsepower with less vibration and fuel consumption;
- 14F/4R gears offer a wide speed range for a variety of uses;
- The double action clutches separately control driven wheels and PTO, which improves productivity;
- The hydraulic disc brake results in easy-to-control feel as it offers strong stopping power;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- Gear shifting synchronizer is optional.

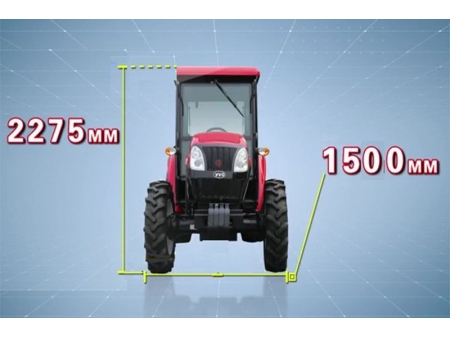

- Height and width
- Suspension device
- Comfortable driving experience
- Narrow enough for orchards
Specifications
| Model | ELX754F | ELX854F | ELX954F |
| Engine type | 4 cylinder naturally aspirated diesel engine | ||
| Rated engine HP (kW) | 55(75) | 62.5(85) | 70(95) |
| Engine speed (rpm) | 2400 | ||
| Clutch | Independent, double action | ||
| Gears | 12F/4R | ||
| Speed range (km/h) | 1.73-28.5 | ||
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540/1000 | ||
| Lift capacity (pivot point) (kN) | ≥23 | ||
| Hydraulic multiplier (set) | 1 or 2 | ||
| Dimensions (L*W*H) (mm) | 4250*1500*2275 | ||
| Wheelbase (mm) | 2184 | ||
| Ground clearance (mm) | 300 | ||
| Wheel track (F/R) (mm) | 1260/1150 | ||
| Min. turning radius (m) | 6.5±0.3 | ||
| Tyre (F/R) | 9.5-20/14.9-24 | ||
| Min. operating mass (kg) | 3050 | ||
