6T DIP TCXO

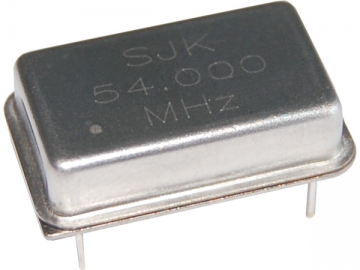

The 6T DIP TCXO is hermetically sealed in an all metal package to protect itself from deteriorating its high precision, high reliability and high frequency stability. Our temperature compensated oscillator offers a frequency range of 1MHz-1500MHz, and its supply voltage is 3.3V, 5.0V or 12.0V. Moreover, the output mode is HCMOS or TTL, and the waveform is either square or sine.
Application
Our DIP crystal oscillator is an ideal choice for electronic equipment, such as mobile communication device, aerospace equipment, test instrument, embedded system, electromechanical equipment, broadcasting device, etc.
Technical Data of 6T DIP TCXO
1. Frequency range: 1MHz-1500MHz
2. Supply voltage: 3.3V/5.0V/12.0V
3. Current: 2-20mA
4. Frequency stability (vs temperature): ±0.5ppm~±5ppm
5. Operating temperature range: -10℃~ 60℃, -50℃~ 85℃
6. Storage temperature range: -55℃~ 125℃
7. Output mode: HCMOS/TTL
8. Waveform: Square/sine
9. Frequency trim: ±1ppm~±5ppm
