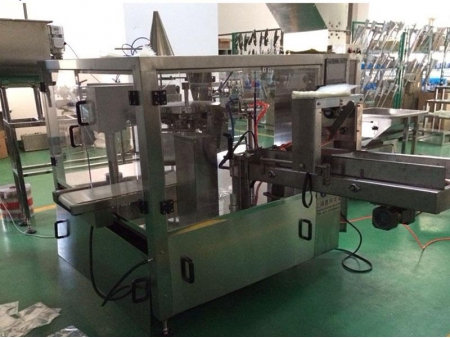

Liquid and Paste Pouch Filling Sealing Machine
Packing Sample Pictures
| Model | HP-6PC | HP-8PC | HP-10PC |
| Mechanical workstation | 6 | 8 | 10 |
| Packaging materials | Laminated film, PE, PP, etc. | Laminated film, PE, PP, etc. | Laminated film, PE, PP, etc. |
| Pouch types | Stand up (with or without zipper), flat bag (3/4 side seal bag, hand bag, zippered bag), paper bag, etc. | Stand up (with or without zipper), flat bag (3/4 side seal bag, hand bag, zippered bag), paper bag, etc. | Stand up (with or without zipper), flat bag (3/4 side seal bag, hand bag, zippered bag), paper bag, etc. |
| Pouch size | W: 100-300mm L: 100-400mm | W: 100-240mm L: 100-300mm | W: 100-200mm L: 100-300mm |
| Packaging speed | 30-60 bags/min (depending on film and material weight) | 30-60 bags/min (depending on film and material weight) | 50-80 bags/min (depending on film and material weight) |
| Machine weight | 1000KG | 1200KG | 1400KG |
| Power supply | Three-phase 380V 50HZ/60HZ | Three-phase 380V 50HZ/60HZ | Three-phase 380V 50HZ/60HZ |
| Total power | 2KW | 2KW | 3.5KW |
| Compressed air consumption | 0.6m³/min (or customized) | 0.6m³/min (or customized) | 0.6m³/min (or customized) |
| Dimensions | 1550 (L)×1350 (W) ×1400(H) mm | 1550 (L)×1350 (W)×1400 (H) mm | 2145 (L) ×1750 (W) ×1550 (H) mm |
| | |
Features
1. This liquid and paste pouch filling sealing machine is appropriate for liquid and paste products, such as ketchup, soybean source, alcohol, cream, beverage, etc.
2. The premad pouch packing machine replaces traditional manual packaging, realizes mass production and greatly decreases cost.
3. For electric control system, the paste filling equipment makes use of Mitsubishi PLC, color touchscreen and human-computer interface. It's convenient to operate. The variable frequency motor allows flexible speed which can be adjusted according to actual manufacture demands.
4. The liquid and paste pouch filling sealing machine is compliant with food hygiene standards and material contacting parts all apply hygienic materials to ensure a high food safety level.
5. Pre-made pouches used have nice pattern and good seal quality.
6. Automatic inspecting system detects many process related procedures and parameters, such as air pressure, temperature, bag feeding, filling, sealing quality, machine state and coding. By doing so, packaging material and raw material can be saved.
7. Applicable packaging materials include laminated film, single-layer PE, PP film, paper, etc.
