Water Pump Series High-speed Diesel Engine (235~1388kW)

Request a Quote

View All: http://highspeedengine.com/5-wb-series-high-speed-diesel-engine.html

Fire Pump Engine
Power: 235-1388kW
rpm: 1500

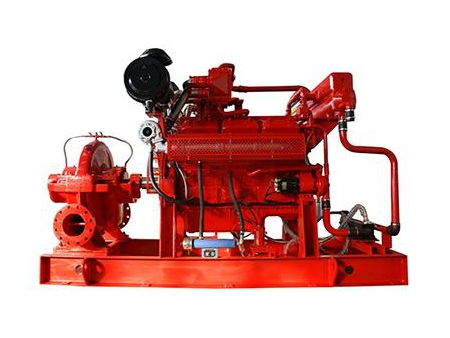

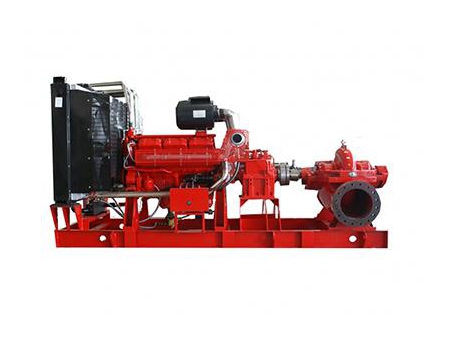

The Water Pump Series high-speed diesel engine features a double starter, strong power, compact structure, easy operation and convenient maintenance. Wandi provides 6 or 12-cylinder high speed diesel engines.

The 6-cylinder diesel engine uses disc spring as the energy storage media. After the spring is manually pressed, energy is released to the flywheel to start the engine with no fuel consumption or emission pollution. The high-speed diesel engine will also start if a m malfunction of the electronic start-up system occurs.

The 12-cylinder Water Pump Series high-speed diesel engine starts using compressed air. This compressed air drives the flywheel, starting the engine, even in the event of electronic start up system malfunction.

Full water-cooling system: The water-eater heat exchanger and specially designed water-air air cooler (for turbocharged intercooler diesel engines) are used to cool the engine system. The cooling system installation features no space or positioning limitations, and enhances engine efficiency by as much as 7 to 10%, saving production costs.

Parameters

Model	Power（KW）		Speed
Model	Rating (kW)	Standby (kW)	rpm
WD129TWB23	235	259	1500
WD129TWB25	258	284	1500
WD135TWB28	280	308	1500
WD145TWB30	309	340	1500
WD145TWB33	339	373	1500
WD145TWB35	353	388	1500
WD269TWB38	382	420	1500
WD269TWB41	418	460	1500
WD269TWB43	432	475	1500
WD269TWB45	465	512	1500
WD269TWB48	482	530	1500
WD269TWB50	506	556	1500
WD269TWB56	562	618	1500
WD287TWB58	588	647	1500
WD287TWB61	618	680	1500
WD327TWB68	682	750	1500
WD327TWB73	730	803	1500
WD327TWB78	780	858	1500
WD327TWB82	820	902	1500
WD327TWB88	882	970	1500
WD327TWB92	920	1012	1500
WD360TWB100	1000	/	1500
WD360TWB110	1100	/	1500
WD360TWB120	1388	/	1500

Application

Wuxi Power Engineering Co., Ltd. (Wandi) has more than six decades of experience in large marine and land diesel engines. Known for quality, durability and reliability, we are committed to the idea that every component, piece and part of the engine contributes to the overall performance. As a leader of high speed power solutions in China, we are able to offer the most extensive of high speed engines for power generation. Wandi diesel engines are specially designed for marine applications, which are widely used by many boating and marine industry manufacturers.
