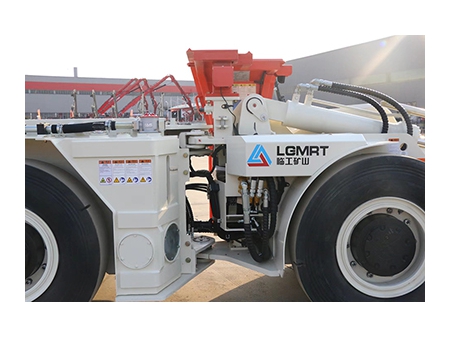

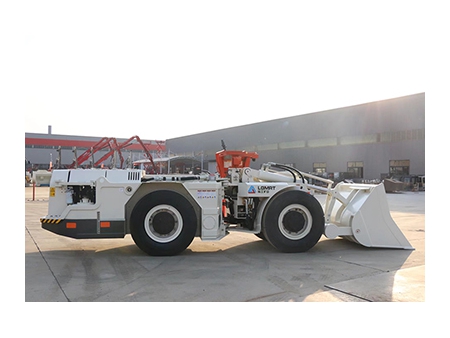

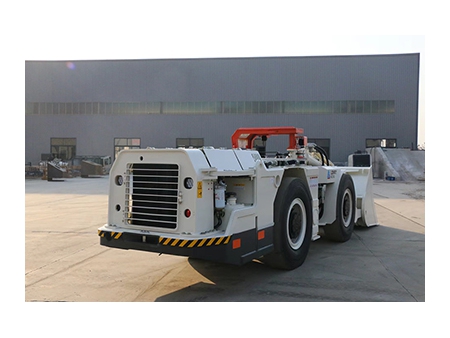

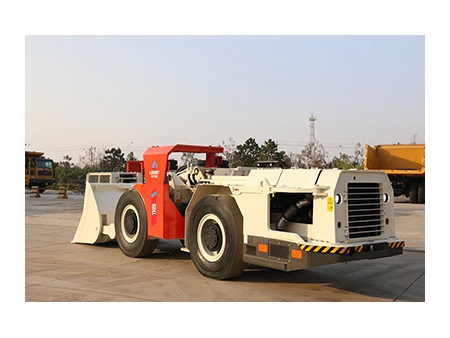

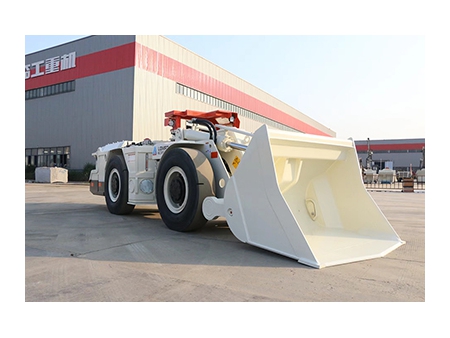

TK50 Diesel Powered Underground Loader
Request a Quote
The TK50 series diesel powered underground loader is the perfect choice for underground loading, transporting and unloading operations. It features a compact and straightforward design, ensuring maximum efficiency and reliability even in the harshest of underground settings. Benefiting from its 3m * 3m shoveling capabilities, this underground loader is ideal for metal mining on any scale.
Features- Enhanced Performance
The diesel powered underground loader, equipped with a power system based on Sandvik technology, delivers improved performance. It offers a greater breakout force, increased fuel efficiency, enhanced overall efficiency, and a low cost per ton. - Safety and Reliability
The loader features a safety canopy that is certified with FOPS and ROPS standards. - Comfortable Operation
The loader is designed for comfortable operation with pilot control and electronically controlled gear shift. These features contribute to a more comfortable driving experience and help reduce operator fatigue. - Easy Maintenance
Maintenance is made easier with an external engine oil drain port, which facilitates convenient access for oil changes. Additionally, the loader offers the option of a power and transmission system made in China, resulting in lower maintenance and replacement costs.
| Model | TK50D | TK50H |
| Rated load (kg) | 5000 | 5000 |
| Length * width * height (mm) | 7020*2550*2350 | 7135*1790*2010 |
| Maximum shovel force (kN) | 103 | 60 |
| Maximum traction (kN) | 126 | 102 |
| Tipping load | 100kN | 9000KG |
| Standard bucket capacity (m3) | 2.5 | 2.5 |
| Forward and Backward Speed | ||
| 1st gear(km/h) | 5.2 | 4.4 |
| 2nd gear (km/h) | 8.8 | 10.7 |
| 3rd gear (km/h) | 18.5 | 19.4 |
| 4th gear (km/h) | 22.8 | |
| No-load Mass | ||
| Gross weight (kg) | 14000 | 13400 |
| Front axle load (kg) | 6000 | 5900 |
| Rear axle load (kg) | 8000 | 7500 |
| Hydraulic Cycle Times | ||
| Raising time (s) | 5 | 5 |
| Lowering time (s) | 4 | 3.5 |
| Tipping time (s) | 3 | 4.5 |
| Diesel Engine | ||
| Model | Cummins QSB4.5 | Deutz TCD2013 L04 2V |
| Rated output power (kW) | 97 | 105 |
| Number of cylinders | 4 | 4 |
| Displacement (L) | 4.5 | 4.76 |
| Cooling method | Water cooling | Water cooling |
| Air filter | dry discharge | dry discharge |
| Emission standards | Tier 3 | Tier 3 |
| Fuel tank volume (L) | 200 | 200 |
| Turning Radius | ||
| Maximum steering angle (°) | ±38 | ±38 |
| Minimum inner clearance radius (mm) | 3050 | 2845 |
| Minimum outside clearance radius (mm) | 5300 | 5140 |
| Lubrication System | ||
| Lubrication method | Manual centralized | Manual centralized |
| Torque Converter | ||
| Model | LGMRT | DANA C273 |
| Drive axle | ||
| Front axle | Meitong CY2F | LGMRT 1910000AF |
| Rear axle | Meitong CY2F | LGMRT 1910000AF |
| Gearbox | ||
| Model | LGMRT | DANA R32000 |
| Tire | ||
| Model | 12.00-24 | 12.00-24 |
| Hydraulic System | ||
| Hydraulic pump | LGMRT | PERMCO |
| Control valve | LGMRT | Parker |
| Steering cylinder | LGMRT | |
| Filter(μm) | 10 | 10 |
| Lift cylinder | LGMRT | |
| Tipper cylinder | LGMRT | |
| Braking System | ||
| Accumulator | Aurel | Olaer |
| Brake element | SAFIM | SAFIM |
| Brake | Normally closed wet type | SAFIM |
| Electric System | ||
| Generator | 24V, 55A | 24V, 55A |
| Starting motor | 24V, 6kW | 24 V, 4 kW |
| Illumination | LED 4-35W | 4 × 70 W |
| Electronic control components | Schneider | |
| Safety Devices | Security roof (ROPS & FOPS) | Security roof (ROPS & FOPS) |
| Handheld fire extinguisher | Handheld fire extinguisher 4kg | |
| Seat belt | Seat belt | |
| Main switch lock/brake button/emergency stop button | Main switch lock | |
| Reversing alert | Reversing alert | |
| Options | Bucket 2.0m³, 1.7 m³ | Wear-resistant replaceable bucket teeth |
| Wireless remote control | Bucket 2.0m³ 1.7 m³ | |
| Exhaust gas purifier (DOC DPF) | Wireless remote control | |
| Automatic fire extinguishing system | Exhaust gas purifier (DOC DPF) | |
| Reverse image | Reverse image | |
| Automatic centralized lubrication | Automatic centralized lubrication | |
