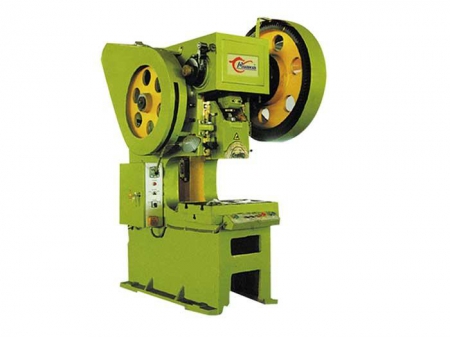

Open Type Power Press Machine

Request a Quote

View All: http://hxmachinetool.com/6-5-open-type-power-press-machine.html

The open type power press machine body features a welding connection to ensure an excellent rigidity. The centralization of control using the PLC makes it easy for people to operate.

JC25-80
JC25-110
JC25-160
JC25-200
JC25-250
JC25-315

Features

The highly rigid double crankshaft reverse operation counteracts the lateral force.
The accuracy of the press meets JIS1 standards.
A long guide rail with six sides ensures the punching precision.
Pneumatic friction clutch achieves a smooth operation. When the solenoid valve is closed, the air pressure disappears, thus allowing the friction plate to completely separate using a spring quick reset.
The safety double solenoid valve made in Japan ensures the safety of the product.
High sensitivity hydraulic provides the overload protection.
Heavy oil offers automatic lubrication to give the machine an excellent wear resistance.
Frequency conversion also gives the machine an excellent wear resistance.
Customers can choose to have an output shaft, air cushion, sliding block feeding, automatic feeding and other devices installed.

Parameters

Model			JC25-80		JC25-110		JC25-160		JC25-200		JC25-250		JC25-315
			L	S	L	S	L	S	L	S	L	S	L	S
Nominal Pressure KN			800		1100		1600		2000		2500		3150
Nominal Pressure Stroke mm			4.5	2.5	5	3	6	3	7	4	7	4	8	5
Stroke of Slide mm			160	90	180	120	200	130	230	150	250	180	250	180
S.P.M Stroke			40~75	50~90	35~65	45~80	30~50	35~65	25~45	30~55	20~40	30~50	20~35	25~45
Max.Die Set Height mm			380	415	400	435	450	485	500	540	550	585	550	585
Die Height Adjustment (mm)			80		90		110		120		120		120
Depth of Throat (mm)			310		350		390		430		470		470
Distance Between Uprights (mm)			1350		1470		1610		1960		2100		2170
Bottom Size of Slide	L-R mm	1200			1360		1500		1850		2000		2100
	F-B mm	460			520		580		650		700		700
Size of Table	L-R mm	1650			1880		2040		2420		2600		2700
	F-B mm	600			680		760		840		920		920
Overall dimension	Width mm L-R	1850			2000		2200		2670		2900		3050
	Length mm F-B	1800			1860		2100		2310		2650		2960
	Height mmHeight	3000			3150		3450		4200		4750		4900
Main Motor Power kw			11		15		22		22		30		37
Total Weight kg			12500		16000		22000		31000		40000		46000
