Artificial Grass Tufting Machine
Request a Quote

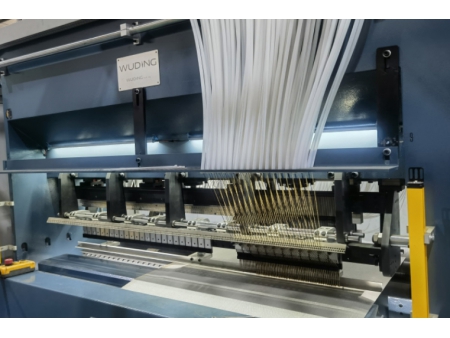

Wuding(WDCM) artificial grass tufting machine is particularly designed to produce synthetic turf for outdoor sports and landscaping applications where different densities and pile heights are required. It can accommodate 3/8", 3/16", 5/8", 5/16", 5/32", 1/2" gauge constructions. This synthetic turf machine offers the ability to operate at speed of 600rpm, and can tuft pile height of up to 70mm. The touch screen is coupled with digital display to provide ease of operation, and pile yarns and backing cloth are fed to tufting machine using servo motor for reliable and stable running.
Examples
Specifications
| Gauge | 5/32 inch | 5/16 inch | 3/16inch | 3/8inch | 5/8inch | 1/4inch |
| Motor power | 11kW*2(2m) 15kW*2(4m) 18.5kW*2(5m) | 11kW*2(2m) 15kW*2(4m) 18.5kW*2(5m) | 11kW*2(2m) 15kW*2(4m) 18.5kW*2(5m) | 11kW*2(2m) 15kW*2(4m) 18.5kW*2(5m) | 11kW*2(2m) 15kW*2(4m) 18.5kW*2(5m) | 11kW*2(2m) 15kW*2(4m) 18.5kW*2(5m) |
| Pile height | 7-18mm | 20-65mm | 8-40mm | 20-70mm | 20-70mm | 20-70mm |
| Mechanical speed | 400-600rpm | 400-600rpm | 400-600rpm | 400-600rpm | 400-600rpm | 400-600rpm |
