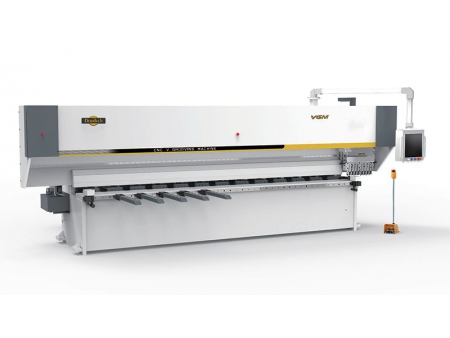

CNC V-Grooving Machine, RAS-Series

Request a Quote

View All: http://cnc-lasercutting.com/7-1-horizontal-cnc-v-grooving-machine.html

Key Parameters
1. CNC controller: HUST-Taiwan
2. High-precise linear guide rail: HIWIN-Taiwan
3. Coupling: R W-Germany
4. Safety standards: CE ISO SGS

The streamline design is originated from EU. The beam and frame go through overall welding and annealing treatment for stress elimination, good rigidity, high accuracy, and long term use without deformation.
It uses ball screw & roller heavy-duty guide rail, D1N6-grade precision helical gear, and planetary reducer.
The CNC controller supports fully automatic operation. The 4-knives can run simultaneously for high grooving efficiency.
It adopts Taiwan HUST controller and Japan Panasonic closed-loop servo system.
It is equipped with automatic lubrication system for low wear, fine processing, machining accuracy and fast response.

Taiwan HUST controller (HUST-CNC-H6DKL-4)
Fully automatic worktable
Hydraulic clamping device
Tool-holder, guide rail made by QT900 material with good durability
High-speed sliding tool-holder, ball screw and linear guider rail
Two kinds of knives, 4 group knives
Standard cooling device for overheating protection
Sleeve hydraulic pipe and fittings
Taiwan HIWIN heavy-duty roller guide rail
Japan YUKEN solenoid valve
Taiwan YYC gear and rack
Germany R W couplings
Japan HERG lubricating system supporting auto-setting time and reducing friction
Cooling spray system for cooling blades, reducing friction and extending the lifetime

Control 6 axes
6-axis linkage
Min. setting unit 0.01mm
10.4 inch color screen
PLC breaking function with the fixed scanning time of 10ms
Each axis with feedback function for showing axis position and avoiding collision
With speed-up & speed-down control, SSR-type signal panel for external input
