Self-Propelled Articulated Boom Lift HZ160/HZ160J
Video

HZ160/HZ160J self-propelled articulated boom lifts from Mantall are made to support working heights of up to 16 meters. The worker can reach work areas that are difficult to access and avoid obstacles thanks to the articulated boom that enables multi-directional accurate positioning and lifting operations. The self-propelled articulated boom lift helps workers do their tasks with ease, due to its 360-degree rotating turntable and working platform's ability to move up and down as well as left and right. They are well suited for indoor applications and can protect floors because the use of ultra-quiet non-marking tires. Our HZ160/HZ160J self-propelled articulated boom lifts also feature a fully proportional Hall effect joystick and CAN intelligent control system that makes it easier to maintain and upgrade while accomplishing various actions simultaneously.

Standard Features
  • Self-leveling platform
  • Hydraulic rotation platform

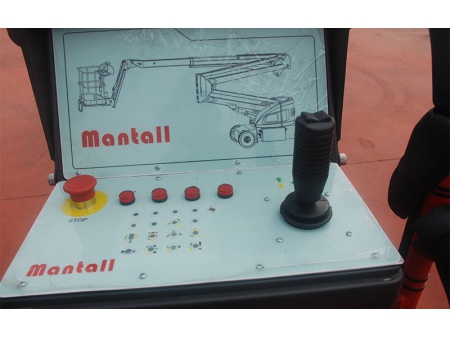

  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual Speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor
Optional
  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
Specifications
Models
HZ120
HZ140/HZ140J
HZ160/HZ160J
HZ200J
Max. working height m 12m 14m 16m 20m
Max. platform height m 10m 12m 14m 18m
Max. outreach m 6m 7.04/7.259m 8.22m/8.32m 11m
Max. up and over clearance 4.2m 6.33m 6.92m/7.47m 7.71m
Max. lift capacity KG 200kg 230kg 230kg 230kg
Platform size B*C*A 1.16m×0.65m×1.1m 1.5m×0.76m×1.1m 1.5m×0.76m×1.1m 1.8m×0.76m×1.1m
Height-stowed D 1.96m 2.00m 2.00m 2.5m
Length-stowed E 4.2m 5.36/6.17 5.88m/6.47m 7.8m
Width F 1.5m 1.75m 1.75m 2.5m
Wheelbase G 1.96m 2.00m 2.00m 2.5m
Ground clearance H 0.18m 0.14m 0.14m 0.3m
Turntable rotation 360°discontinuously 360°discontinuously 360° discontinuously 360° discontinuously
Turntable tailswing 0 0 0 0.58
Platform rotation / 180° 180° 180°
Jib swing / 0/140°(HZ140J only) 0/140°(HZ160J only) 0/135°
Platform Level Hydraulic leveling Hydraulic leveling Hydraulic level Hydraulic level
Drive speed, stowed 4.0km/h 3.7km/h 4.8km/h 4.0km/h
Drive speed, extended 1.0km/h 1.0km/h 1.0km/h 1.0km/h
Gradeability 25% 30% 30% 45%
Max. tilt angle
Max. lateral force N 400N 400N 400N 400N
Max. wind speed allowed 12.5m/s 12.5m/s 12.5m/s 12.5m/s
Min. turning radius-(inside) 1.9m 2.3m 1.1m 2.51m
Min. turning radius-(outside) 4.2m 3.5m 3.50m 5.69m
Drive wheels number 2 2 2 2
Steering wheel number 2 2 2 2
Controls Electrical hydraulic proportional control
System voltage DC24V DC24V DC24V DC24V
Hydraulic tank capacity 32L 35L 35L 68L
Tire size 22*7*16 600*190 600*190 355/55D-625
Power DC48V/225Ah DC48V/320Ah DC48V/320Ah DC48V/420Ah
Total weight 4.0T 5.6T/6.34T 6.49T/6.64T 6T

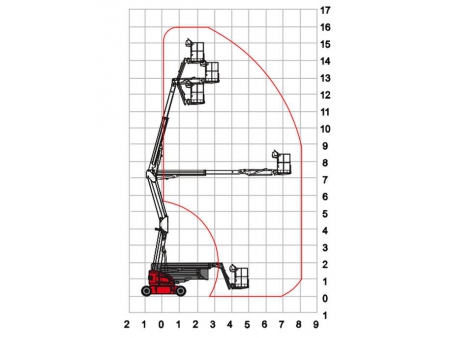

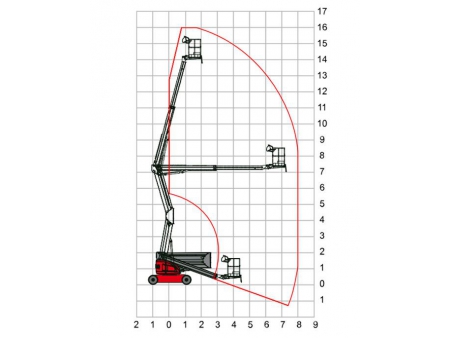

Working Heights
  • HZ160
  • HZ160J

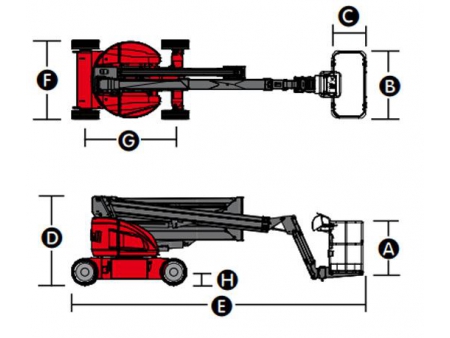

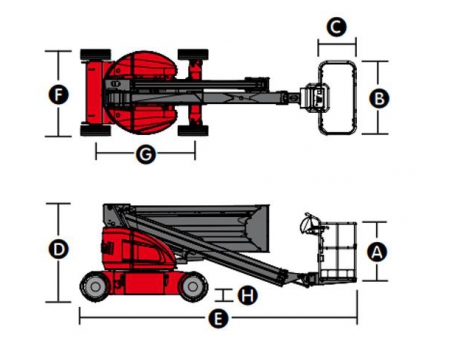

Stowed Dimensions
HZ160
HZ160J
