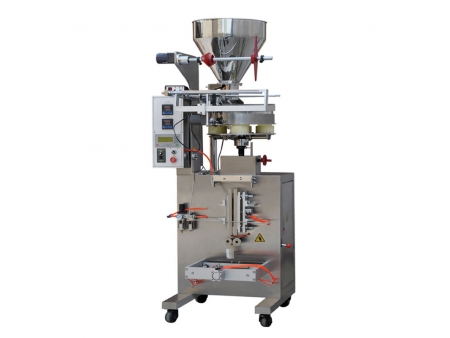

Powder Packing Machine

Request a Quote

View All: http://foodmachinerychina.com/9-4-powder-packing-machine.html

Powder packing machines are widely suitable for packing products of food, medicine, chemical industry and pesticide in mesh sizes ranging from 120 to 400mm automatically, such as food additives, milk powder, soya powder, bean powder, albumen powder, medical powder, cosmetic powder and slimming tea powder etc.

All the processes of measuring, making, filling, sealing, code printing, cutting and counting etc. can be done automatically.

Main Features

The machine has the features of simple construction, reliable circulator and easy maintenance, high precision, high efficiency and no crashing the materials.
The machine adopts the screw pole putting material, adopting servo-code and the microcomputer technology control.
Code simultaneous control, sensitive action, low noise, outstanding, reliable measure, speed quickly, high precision. It also can display the measure counter.
Famous brand PLC control system, wide version touch screen, convenient to operate.
Check weigher, metal detect machine and finished product conveyor are optional for customers.

Specifications

Model	LT420	LT520	LT720
Capacity	Max 70bags/min	Max 60bags/min	Max 30bags/min
Bag Size	Width:60-200mm	Width:100-250mm	Width:150-350mm
Bag Size	Length:60-300mm	Length:80-350mm	Length:100-450mm
Max Film Width	Max 420mm	Max 520mm	Max 720mm
Film Thickness	0.04-0.09mm	0.04-0.09mm	0.04-0.09mm
Power Source	2.2kW 220V 50HZ	3kW 220V 50HZ	4kW 220V 50HZ
Air Consumption	0.8Mpa 0.5m³/min	0.8Mpa 0.6m³/min	0.9Mpa 0.7m³/min
Dimension (L×W×H) (L×W× H)	1400 x 970 x 1600 mm	1430x1200x1700mm	1780 x 1350 x 2000 mm
Weight	450kg	650kg	800kg
