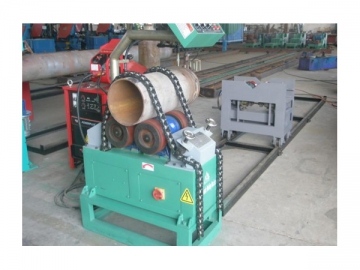

Automatic Portable Piping Welding Machine (FCAW/GMAW)
Portable Piping Automatic Welding Machine (FCAW/GMAW)
Model: PPAWM-12Aa
Features
1. The portable piping automatic welding machine offers excellent welding capacity (200-300 inch/day, which is three times higher than manual welding).
2. The machine is easy to operate.
3. The portable piping automatic welding machine offers excellent surface finishing.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The portable piping automatic welding offers good driving reliability (driven with friction).
6. The machine is extremely portable.
Applications
The portable piping automatic welding machine has broad use for pipe welding of various structures of DN≥300 in various industries.
Technical Parameters of the Portable Piping Automatic Welding Machine (FCAW/GMAW)
Pipe Diameter Applicable: DN50-300(φ60-325)
Pipe Wall Thickness Applicable: 3-20MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if necessary)
Driving System: Driven by two line rubber roller and reducer
Clamping System: Clamping with double chain manual screw
Bracket System: Nil (unless customer requires it)
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Manual cross regulator
Oscillating System: A product of our patented technology, step motor driving oscillator
Control System: A product of our patented technology
Welding Procedure: FCAW/GMAW
Welding Power: OEM products in China (or as per customers’ demands)
Qianshan is a specialized automatic portable piping welding machine manufacturer based in
