DFB Butterfly Laser Diode Module

DFB Butterfly Laser Diode Module
DFB Butterfly Laser Diode Module
DFB Butterfly Laser Diode Module
Request a Quote

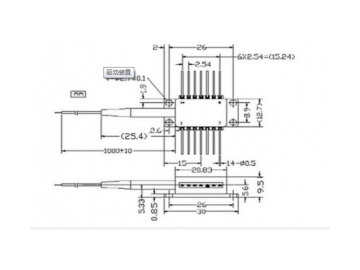

The 1MW-16MW 1550nm DFB butterfly laser diode is encapsulated in a 14-pin butterfly package. The equipment consists of a built-in thermoelectric cooler, thermistor, and monitoring photoelectric diode. It produces a low threshold current, high output power, and small temperature coefficient of the wavelength. According to the customer’s requirements, the module can be supplied with a built-in or external isolator and internal or external modem.

Applications
CATV forward-path
1550nm broadcast and point-to-point applications

Absolute Maximum Ratings
Parameter Symbol Condition Min. Max. Unit
Operating Temperature Tc I=Iop -20 80 °C
Storage Temperature Tstg - -40 85 °C
Laser Forward Current If - - 150 mA
Laser Reverse Bias Vr - - 2 V
Photodiode Reverse Bias Vrpd - - 10 V
TEC Current Itec -20 °C < Tc < 65 °C, Top=25 °C If=100 mA 2 2 A
TEC Voltage Vc
-2.5 2.5 V
ESD - ESD-HBM:R=1500 ohm, C=100 pF -500 500 V
Lead Solder Temperature - - - 260 °c
Lead Soldering Time - - - 10 s
Fiber Bend Radius - - 30 - mm
Fiber Yield Strength - - - 1 kgf

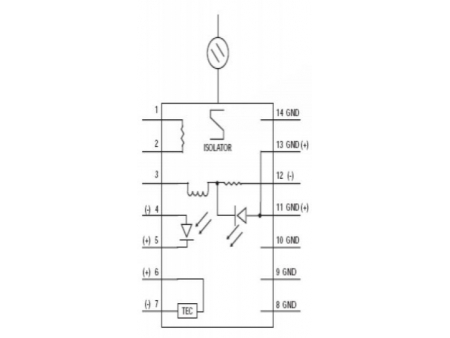

Pin Description
Pin Description Pin Description
1 Thermistor 8 Ground
2 Thermistor 9 Ground
3 LD (N) bias 10 Ground
4 Detector (P) 11 LD (P), ground
5 Detector (N) 12 LD (N), RF modulation
6 TEC ( ) 13 LD (P), ground
7 TEC (-) 14 Ground
