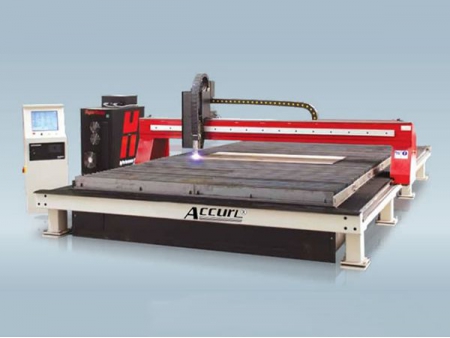

CNC Plasma Cutting Machine
Request a Quote
(Cutting Metal and Steel using HyPerformance Plasma Source)
Thes CNC plasma cutting machines are designed for cutting steel and other metals with high efficiency using a Hyperformance plasma source. The plasma cutting machine provides flexible cutting solutions with its high powered plasma cutting head which offers excellent performance at a low operating cost. The CPL series is designed for long-term use without consumable part or accuracy loss.
Standard Configuration
- Hypertherm EDGE® Pro CNC
- HyPerformance® HPR130XD®,® HPR260XD®,® HPR400XD® , ® HPR800XD® plasma source
- Arc Glide™ THC automatic height control system
- Dual side AC servo Y motorization with direct planetary gear box, helical rack and pinion drive system
- X and Y axis precision linear rail guide ways in
- High speed torch lifter with automatic arc voltage height control
- Fully enclosed hose and cable carriers
- Integrated downdraft table with multi zone CNC control
- TurboNest® Cad/Cam Software
- Magnetic torch anti-collision protection system
- Laser guided plate alignment
Optional Equipment
- Hypertherm Hydefinition Plasma HPR260XD, HPR400XD, HPR800XD
- Hypertherm automatic gas console
- Oxy cutting station with automatic ignition system
- Manual angle cutting apparatus for oxygen and plasma
- True Hole™ Technology with EDGE® Pro CNC Controller
- 5 axis plasma cutting technology:
- Esa Kvara cnc controller
- Automatic gas console
- Lantek Expert II software
- Angle cutting head
- Lantek Expert II Cad/Cam software
- According to the working conditions cooling fan or heater can be add to the electrical panel
- Conformity of European Union CE
HPRXD Plasma Selections Working Data
HPR130XD | HPR260XD | HPR400XD | HPR800XD | |
| Mild steel cut capacity | ||||
| Dross free | 16 mm | 32 | 38 | 38 |
| Production pierce | 32 mm | 38 | 50 | 50 |
| Maximum cutting capacity | 38 mm | 64 | 80 | 80 |
| Stainless steel cut capacity | ||||
| Production pierce | 20 mm | 32 | 45 | 75 |
| Maximum cutting capacity | 25 mm | 50 | 80 | 160 |
| Aluminum cut capacity | ||||
| Production pierce | 20 mm | 32 | 45 | 75 |
| Maximum cutting capacity | 25 mm | 50 | 80 | 160 |
Specifications
| Type | Width | Length | Height | Cutting Width | Cutting Length |
| mm | mm | mm | mm | mm | |
CPL- 1530 | 2550 | 4550 | 2250 | 1500 | 3000 |
CPL- 1540 | 2550 | 5650 | 2250 | 1500 | 4000 |
CPL- 2040 | 3700 | 5650 | 2250 | 2000 | 4000 |
CPL- 2540 | 4250 | 5650 | 2250 | 2500 | 4000 |
CPL- 2560 | 4250 | 8050 | 2250 | 2500 | 6000 |
*ACCURL offers consumables, parts and Hypertherm materials at very competitive prices.
Detailed Pictures

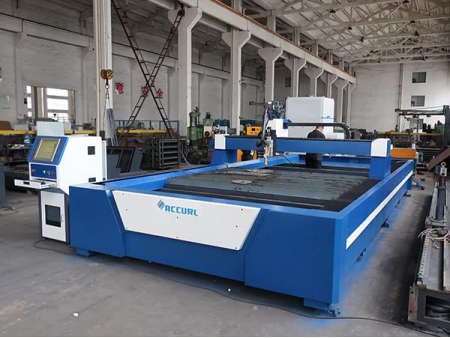

- CNC Plasma Cutting Machine HPR130XD

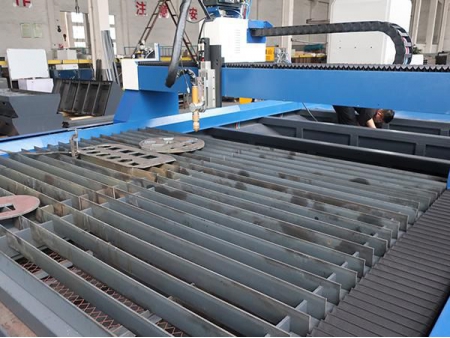

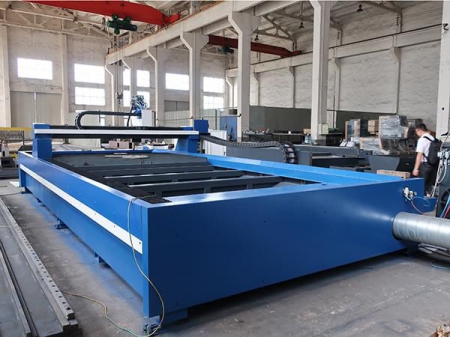

- Cutting table for plasma cutting machine
- Gas-dust extraction filter for plasma cutting machine

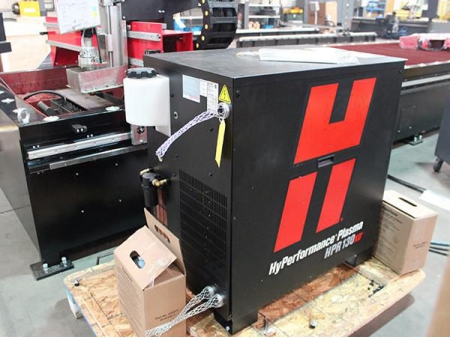

- HyPerformance HPR130XD Plasma Source
