Semi-Conductive Non-Woven Tape
Request a Quote

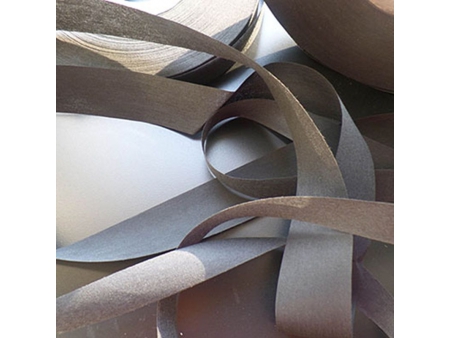

S&A offers semi-conductive non-woven tape, specially designed for cable conductor binding, cable shielding, and other applications. Our tape is made from 100% polyester fibers and impregnated with conductive adhesive. It exhibits high longitudinal strength, low resistance, and stable performance.
Features
- The tape provides efficient cable shielding by effectively weakening the electric field intensity.
- Its high mechanical strength allows easy wrapping and longitudinal covering for various power cables.
- The tape demonstrates excellent heat resistance, maintaining stable performance during high-temperature exposure.
Specifications
| Grade (μm) | Basis Weight (g/m²) | Tensile Strength (N/cm) | Elongation (%) | Surface Resistance (Ω) | Volume Resistance (Ω.cm) | Short-Term Stability (℃) | Long-Term Stability (℃) |
| 100±20 | 35±10 | 20↑ | 10↑ | 1500↓ | 1*106↓ | 230 | 90 |
| 150±20 | 50±10 | 30↑ | 12↑ | 1500↓ | 1*106↓ | 230 | 90 |
| 200±30 | 75±10 | 43↑ | 12↑ | 1500↓ | 1*106↓ | 230 | 90 |
| 250±40 | 90±10 | 46↑ | 12↑ | 1500↓ | 1*106↓ | 230 | 90 |
| Customized specifications are available upon request. | |||||||
Note: The tape is available in black color. The minimum width for slitting is 5mm, with inner core sizes of 52mm or 76mm. The maximum outer diameter for winding is 800mm, and packaging is done in cartons.
