Button Drill Bits
- 70mm
- 90mm
- 90mm
- 130mm

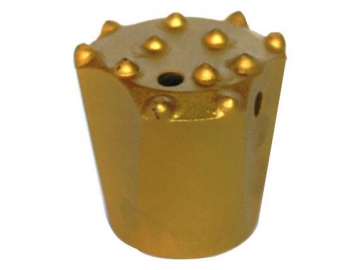

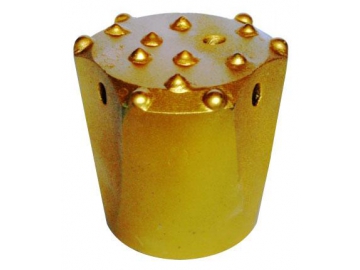

The Button Drill Bits, sometimes called top hole hammer bits, are comprised of a cemented carbide button and bit body.. The cutters of the button bit arrange freely, which can determine the number and locations of the gauge buttons and front buttons reasonably according to the diameter of the drill holes and the rock-breaking load. The diameter of the bits will not be affected.
Button bits are typically used in hydraulic rock drills, which can bore through hard and brittle rock. Additionally, button bits have reasonable quantity and proper location of gauge buttons and front buttons. The special design of the bit can not only improve the drilling speed, but also extend the service life of the button bits. The size and shape can be customized based on user requirements.
To simplify the selection process, XINLE classifies the drill bits according to the diameter of the bit, the bit face configuration and inlay/insertion of tungsten carbide.
XINLE offers the diameters of the button bits from 34 mm to 130 mm.
XINLE offers button bits having drop center and flat face bit face configuration.
Drop center bit and flat face bit face configuration are two common button bits.
Making the right choice of button bits made up of cemented carbide can speed up your productivity.
The button bit with semi ballistic carbide configuration offers faster penetration in softer rock. They are best fit for non-abrasive ground conditions.
Button bits with hemispherical carbide configuration are capable of drilling in hard rock. Although their penetration rate is slower compared with the bits with semi ballistic carbide profile, the life of the bit is longer.
| Part NO. | Bit diameter | Gauge button | Front button | Thread button | |
| mm | In | ||||
| Q4 34-7° | 34 | 1-3/8 | 3 | 1 | 7° |
| Q4 36-7° | 36 | 1-7/16 | 3 | 1 | 7° |
| Q5 38-7°25R | 38 | 1-1/2 | 4 | 1 | 7°R25 |
| Q5 40-25R 32R | 40 | 1-9/16 | 4 | 1 | R25 T30 |
| Q6 42-25R 32R 30T | 42 | 1-11/16 | 4 | 2 | R25 T30 |
| Q6 45-25R 32R 30T | 45 | 1-3/4 | 4 | 2 | R25 R30 T30 |
| Q6 48-32R 30T | 48 | 1-7/8 | 4 | 2 | R32 T30 |
| Q6 51-32R 30T | 51 | 2 | 4 | 2 | R32 T30 |
| Q7 55-32R 30T | 55 | 2-5/32 | 4 | 3 | R32 T30 |
| Q7 57-32R 30T | 57 | 2-1/4 | 4 | 3 | R32 T30 |
| Q9 60-32R 38R 30T | 60 | 2-23/64 | 6 | 3 | R32 R38 T30 |
| Q9 64-38R 30T 40T | 64 | 2-1/2 | 6 | 3 | R38 T30 T40 |
| Q9 70-38R 30T 40T | 70 | 2-3/4 | 6 | 3 | R38 T30 T40 |
| Q10 76-38R 40T 45T | 76 | 3 | 6 | 4 | R38 T40 T45 |
| Q12 90-40T 45T | 90 | 3-1/2 | 6 | 6 | T40 T45 |
| Q12 102-45T 51T | 102 | 4 | 6 | 6 | T45 T51 |
| Q14 115-45T 51T | 115 | 4-17/32 | 8 | 6 | T45 T51 |
| Q14 130-73-2 | 130 | 5-3/16 | 8 | 6 | T73-2 |
| Part NO. | Bit Diameter | Thread Button | |
| mm | In | ||
| Q4 38-25R 7° | 38 | 11/2 | 7° R25 |
| Q6 40-25R T30 | 40 | 1-9/16 | R25 T30 |
| Q6 42-30T 25R | 42 | 1-11/16 | R25 T30 |
| Q6 46-30T 32 R | 46 | 1-3/4 | R32 T30 |
| Q6 51-30T 32R | 51 | 2 | R32 T30 |
| Q8 70-T40 38R | 70 | 2-3/4 | R38 T40 |
