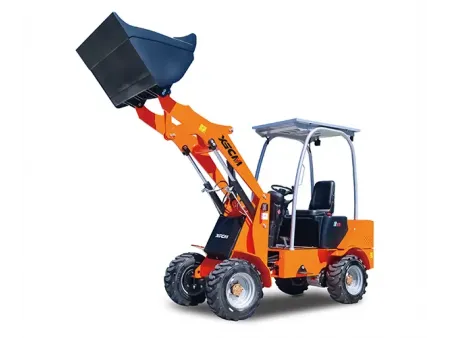

E10/15 Electric Wheel Loader
Request a Quote
Compact front end loader ideal for residential and urban projects
- Rated load
500-700kg - Rated bucket capacity
0.3m³ - Operating weight
1050-1650kg - Dump height
1400-2000mm
The E10/15 electric compact wheel loader operates with exceptionally low noise, making it ideal for residential areas and noise-sensitive environments. Its parallel linkage system enhances pallet handling and forklift applications, ensuring stable lifting and precise load control.
Specifications
| Model | ||
| Rated load | 500kg | 700kg |
| Rated bucket capacity | 0.3m³ | 0.3m³ |
| Operating weight | 1050kg | 1650kg |
| Dump height | 1400mm | 2000mm |
| Min. turning radius | 1780mm | 2230mm |
| Battery capacity | 8kWh | 16kWh |
| Dimensions (L×W×H) | 3010×1080×2070mm | 3520×1080×2070mm |
Features
- Equipped with a Permanent Magnet Synchronous Motor (PMSM) drive system that replaces the traditional internal combustion engine. This design offers a simpler structure, eliminates frequent oil and filter replacements, and greatly reduces maintenance costs.
- Compatible with a wide range of attachments such as quick-change buckets, log grapples, and snow sweepers, enabling versatile performance across multiple scenarios including digging, breaking, pushing, drilling, and material handling.
Optional attachment

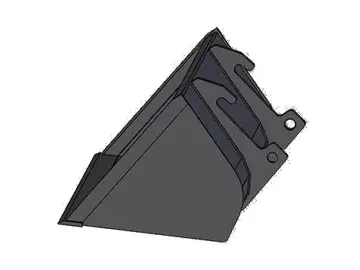

- Standard bucket
- Deep bucket
- Screening bucket
- Quick coupler
- Pallet forks
- Auger
- Snow plow blade
- Log grapple
- Round bale handler
- Square bale handler
- Flail mower
- Lifting boom / Crane Attachment
Applications
