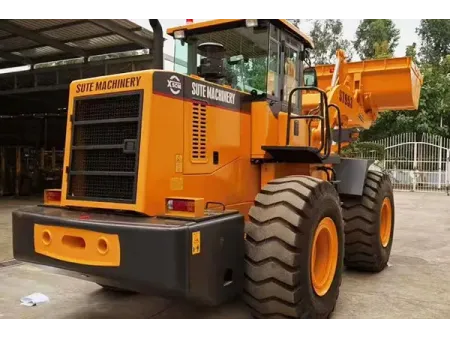

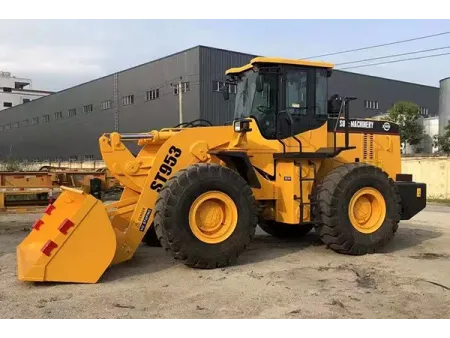

ST953H Wheel Loader

Request a Quote

Website: http://sutemachinery-en.com/1-2-6-wheel-loader.html

Hydraulic wheel loader with diesel engine for heavy-duty material handling operations

Rated load
5000kg
Rated bucket capacity
2.8m³
Max. dumping height
3040±15mm
Dumping reach
1290mm

Specifications

Rated load	5000kg
Rated bucket capacity	2.8m³
Max. dumping height	3040±15mm
Dumping reach	1290mm
Overall length (bucket on the ground)	7380mm
Overall width	2840mm
Bucket width	3020mm
Height (to the top of cabin)	3340mm
Wheelbase	2760mm
Track width	2240mm
Min. ground clearance	450mm
Operating weight	≤16500kg
Max. breakout force	140kn
Gradeability	28°
Turning angle	35±1°
Turning radius	6180mm
Dump angle at any position	45°

Dump angle at any position	45°
Lifting time of bucket	≤5.8s
Total hydraulic cycle time	≤12s
1st gear forward	11.5km/h
2nd gear forward	38km/h
1st gear reverse	16km/h
Engine model	Weichai Strye WD10G220E23
Engine type	In-line, water cooled, four-stroke direct injection
Rated power	162kW
Cylinder	6-126×130mm
Rated speed	2000rpm
Torque converter model	YJSW315-6
Torque converter type	Single stage, double turbine, colligation
Transmission model	ZL40/50
Transmission type	Power shift, planetary
Number of speeds	Forward 2, Reverse 1
Tire	23.5-25-20PPR

Note:
With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.

Features

Single-stage, four-element (dual-turbine) torque converter enables continuously variable transmission, providing smooth starts and easy control

Power shift transmission combined with a hydraulic implement system ensures effortless operation and precise handling

Z-bar loader linkage delivers strong breakout force and high dumping height, maximizing productivity in loading and lifting tasks

All-wheel dual-line disc-caliper braking system, supported by rear-mounted air reservoirs, guarantees safety, stability, and reliable braking performance in demanding conditions
